Removing Heating/Fresh-Air Fan Motor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

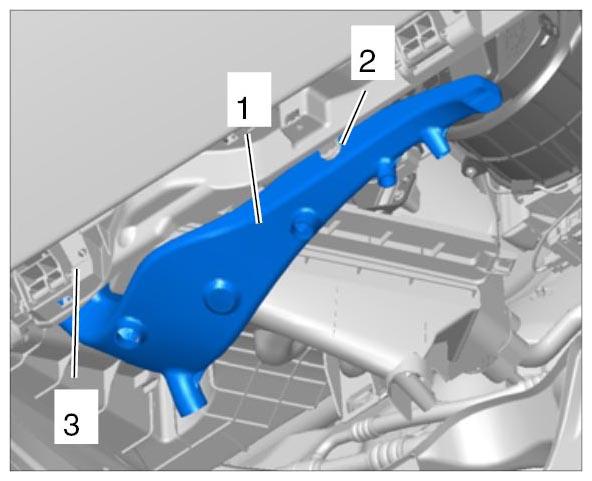

Unclip footwell outlet vent on passenger's side -1- from the bracket -2- and pull it off the air guide -3- .

Fig 1: Identifying Footwell Outlet Vent On Passenger's Side From Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

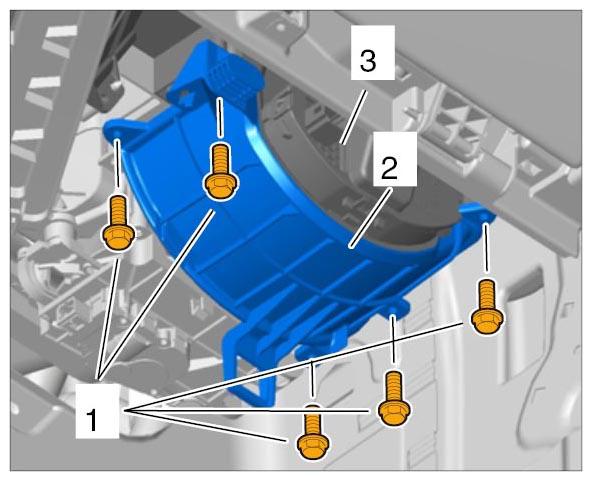

Unscrew five fastening screws -1- on the fan motor cover -2- .

Fig 2: Identifying Fastening Screws On Fan Motor Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

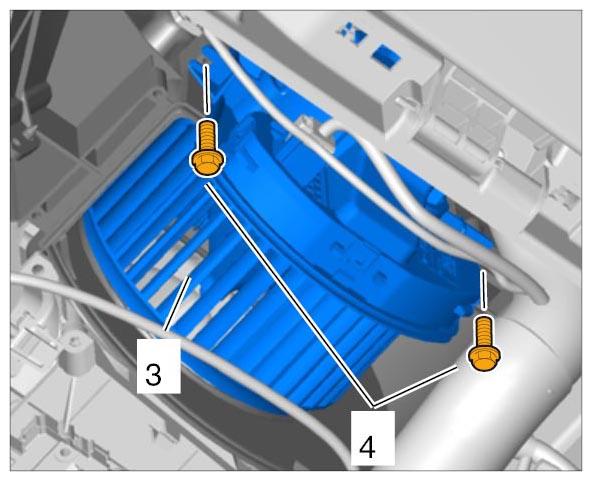

Unscrew two fastening screws -4- on the fan motor -3- .

Fig 3: Identifying Fastening Screws On Fan Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

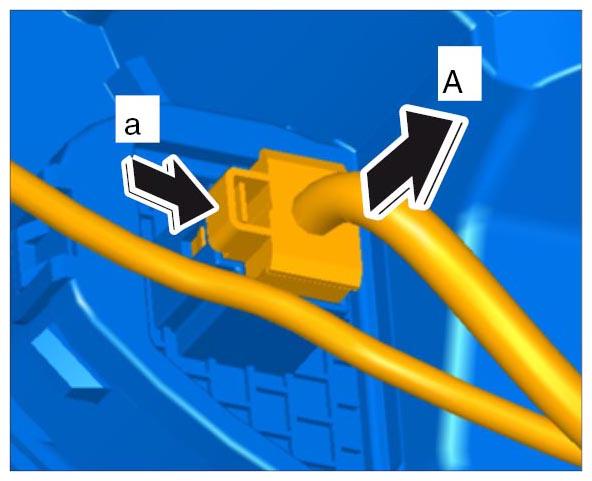

Release electric plug connection on the fan motor -a- and disconnect it -A- .

Fig 4: Disconnecting Connector From Fan Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
