Removing Heater/Fresh-Air Blower Motor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

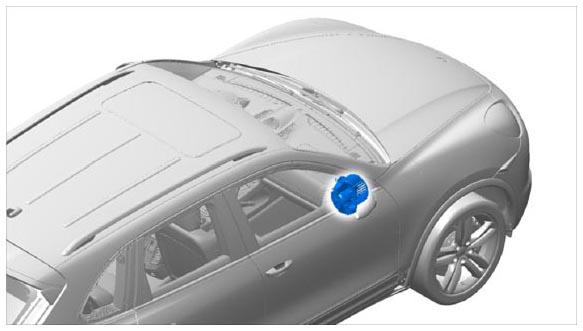

Fig 1: Identifying Installation Position Of Blower Motor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

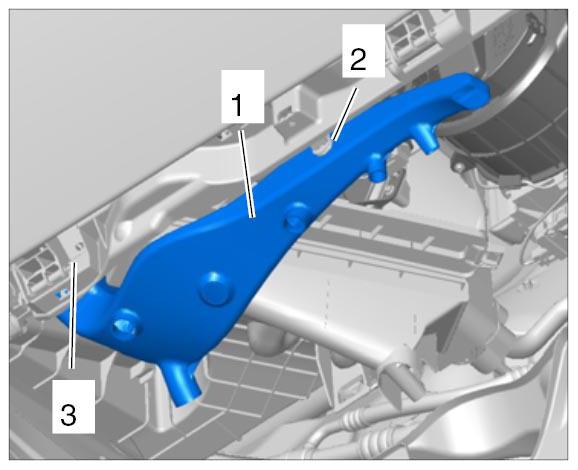

Unclip footwell outlet vent on passenger's side -1- from the bracket -2- and pull it off the air guide -3- .

Fig 2: Identifying Footwell Outlet Vent On Passenger's Side From Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

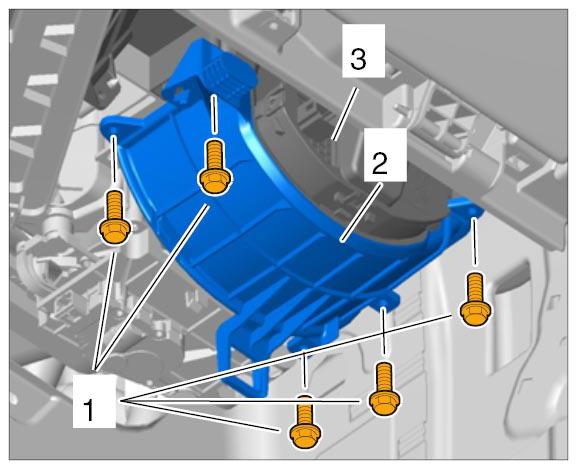

Unscrew five fastening screws -1- on the blower motor cover -2- .

Fig 3: Identifying Fastening Screws On Blower Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

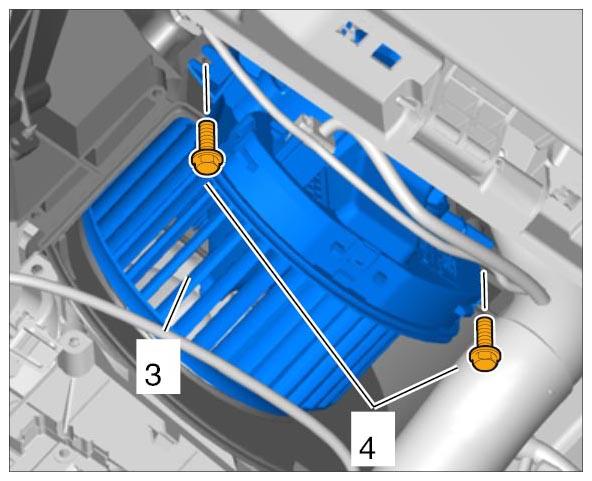

Unscrew two fastening screws -4- on the blower motor -3- .

Fig 4: Identifying Fastening Screws On Blower Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

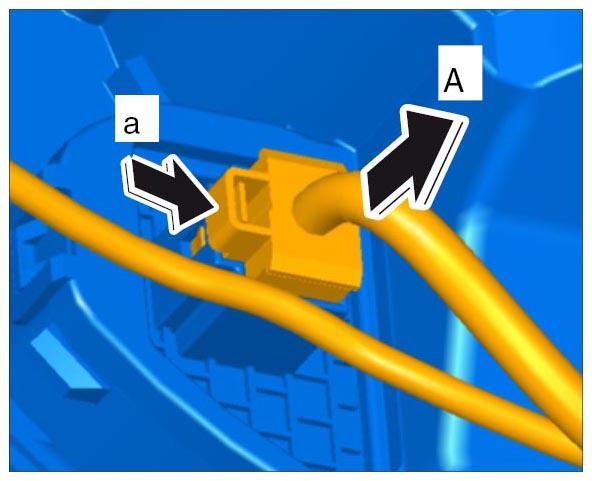

Release electric plug connection on the blower motor -a- and pull it off -A- .

Fig 5: Removing Connector From Blower Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
