Installing Heater/Fresh-Air Blower Motor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Plug in electric plug connection on the blower motor -A- until the connector engages securely.

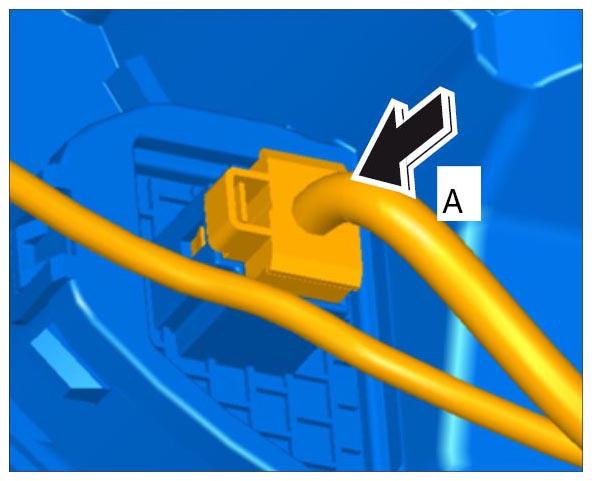

Fig 1: Plugging In Connector On Blower Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in two fastening screws -4- on the blower motor -3- .

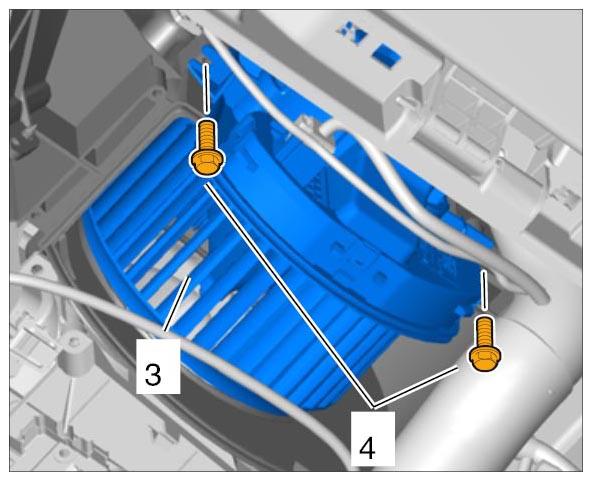

Fig 2: Identifying Fastening Screws On Blower Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in five fastening screws -1- on the blower motor cover -2- .

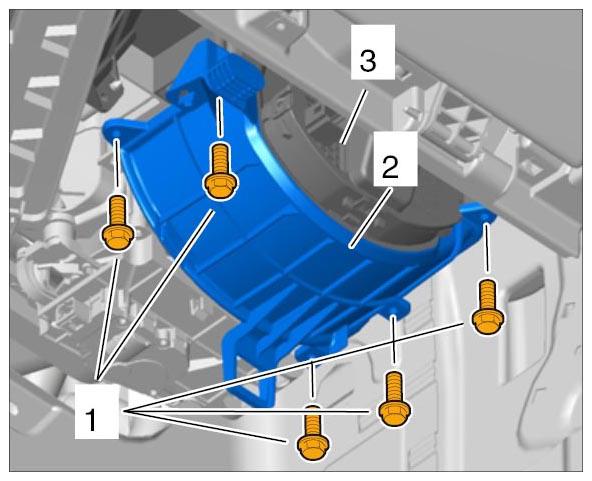

Fig 3: Identifying Fastening Screws On Blower Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Attach footwell outlet vent -1- to the air guide -3- and clip it into the bracket -2- .

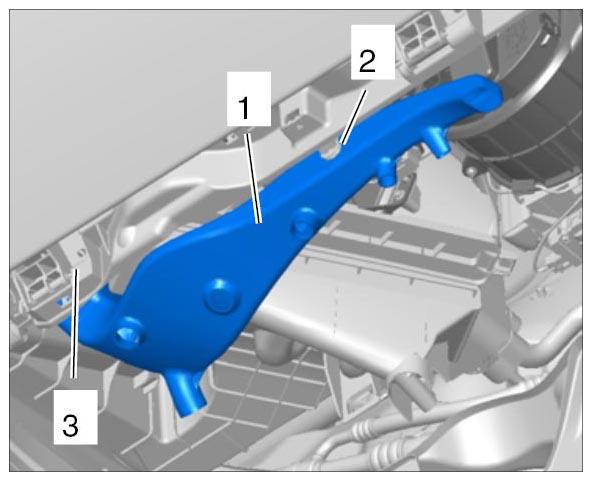

Fig 4: Identifying Footwell Outlet Vent To Air Guide
