Installation Position Of Heating/Fresh-Air Unit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

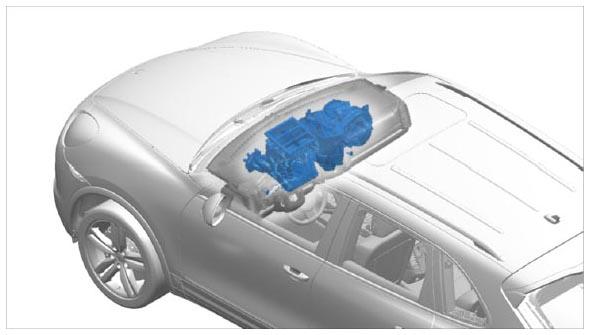

Fig 1: Identifying Heater/Air-Conditioning Unit Installation Position
G09941312Courtesy of PORSCHE CARS NORTH AMERICA, INC.
