Removing Heater/Air-Conditioning Unit

Information

The heat exchanger connection must be closed off using suitable stoppers after disconnecting the coolant hoses.

Information

• Line the driver's footwell with very absorbent material  .

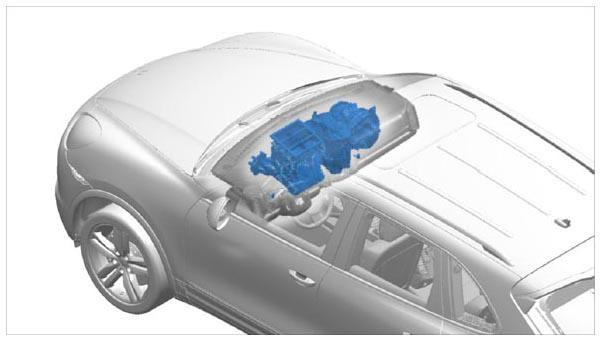

  Fig 1: Identifying Heater/Air-Conditioning Unit Installation Position

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

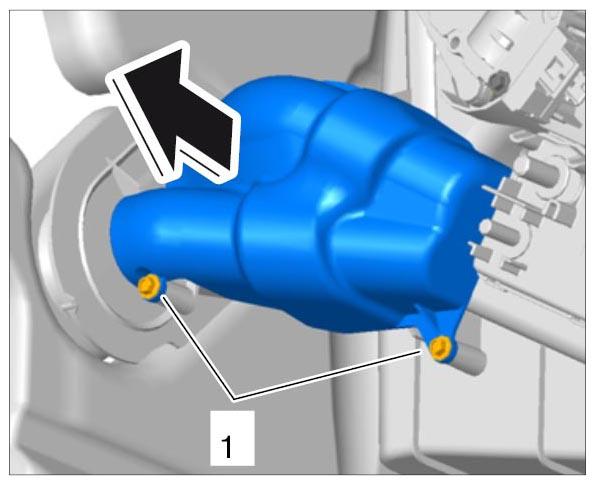

1. Unscrew and remove two fastening screws -1-  on the cover on the coolant lines.
   Fig 2: Identifying Coolant Lines Cover And Fasteners

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove cover for coolant lines.

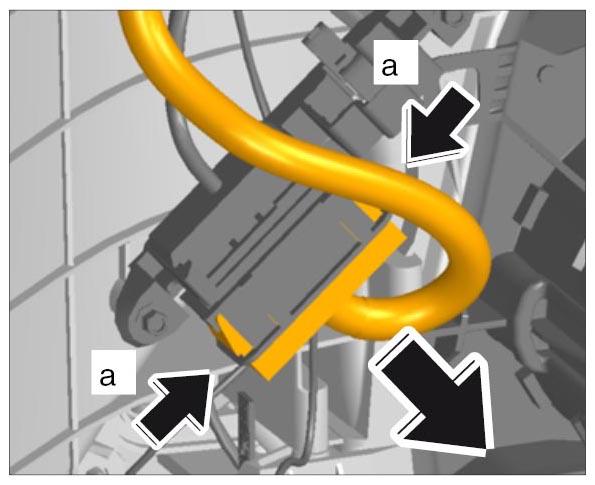

3. Release electric plug connection for the servo motors at the heater/air-conditioning unit -a-  and disconnect it -arrow-  .
   Fig 3: Pulling Off Connector For Servo Motors

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

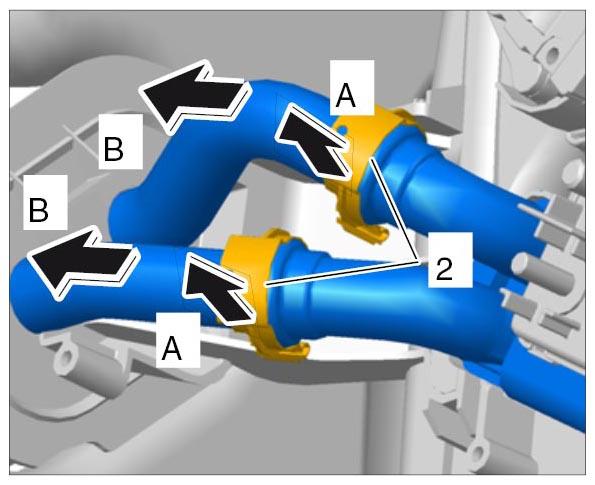

4. Pull the retaining clips -2-  on the coolant supply line and return line downwards -arrow A-  .
   Fig 4: Pulling Off Retaining Clips On Coolant Lines

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Pull the interior carpet away from the coolant lines and place a suitable collecting container in position.
6. Carefully pull the coolant lines out of the heat exchanger -arrow B-  and drain the coolant into the collecting container.

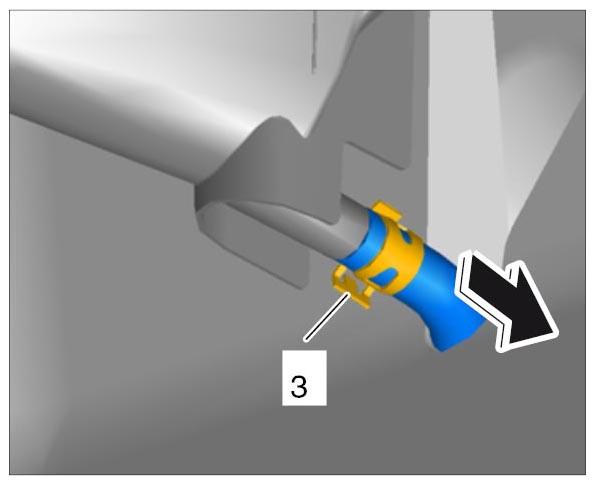

7. Release the clamp -3-  and pull the water drain hose off the heater/air-conditioning unit.
   Fig 5: Pulling Off Water Drain Hose

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Disconnect the center air vents for the footwell and slide them onto the heater/air-conditioning unit. → 805519 REMOVING AND INSTALLING FRONT FOOTWELL OUTLET VENT

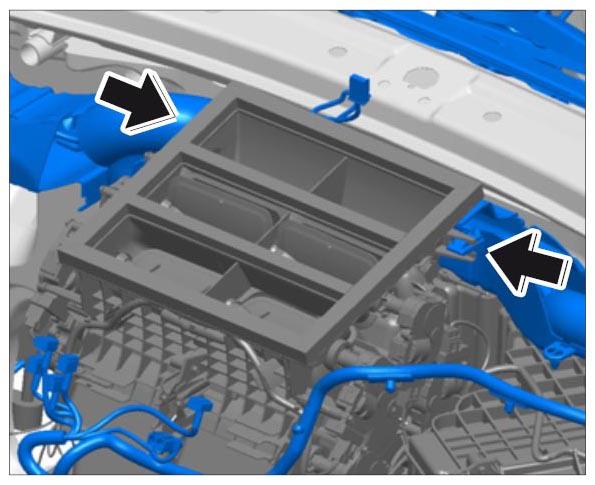

9. Unclip main wire harness and cable duct at the heater/air-conditioning unit at the left and right -arrows-  .
   Fig 6: Identifying Main Wire Harness

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
10. Grasp the heater/air-conditioning unit at the left and right, pull it backwards and remove completely.
