Installing Drive Belt

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The pictures in this document may vary from the original.

Information

Using an open-ended wrench can damage the belt tensioner.
Using a tool with a width across flats of 32 mm can damage the belt tensioner.

Information

Fig 1: Drive Belt Routing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant pulley pump.
Deflection roller, cylinder bank 5.
Air-conditioning compressor pulley.
Hydraulic pump pulley.
Crankshaft pulley.
Generator pulley.
Deflection roller, cylinder bank 1.
Tensioning roller.
The figure above shows the complete belt threading course. The pulleys are numbered according to fitting sequence.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Deflection roller.
Hydraulic belt tensioner.
M8 screw.
Deflection roller.
Dual poly V-belt.

Bend the drive belt to form a loop and guide it through the coolant pump pulley -1- and crankshaft pulley -5- towards the tensiong roller -8-.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Place the top part of the belt loop over the coolant pump pulley -1-.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Place the lower part of the belt loop around the crankshaft pulley at the bottom -5-.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Guide the belt section from the coolant pump pulley -1- around rhe deflection roller -2- on cylinder bank 5 -8-.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Then guide the section of the belt around the air-conditioing compressor pulley -3- at the bottom.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lay a loop around the power-steerig pump -4-.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lay the loose end of the drive belt from the coolant pump downwards around the generator pulley -6- and deflector roller -7- of cylinder bank 1 -4-.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Gather the belt section between the deflector roller -7- of cylinder bank 1 -4- and the crankshaft pulley -8- to form the loop and guide it upwards to the tensioning roller -8-.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

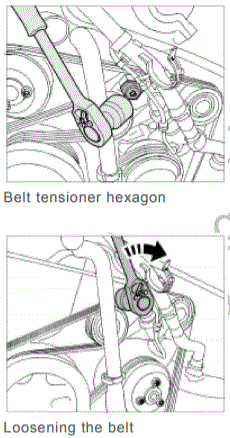

Use a ring wrench or socket (width across flats 30 mm) to turn the belt tensioner in a clockwise direction at the hexagon.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lay the drive belt on the tensioning roller. Slowly relieve the tensioning roller.
Check that the drive is routed correctly. Fig 1
Check that the drive belt is seated correctly on the pulleys.
Clip the coolant hose -1- into the holder -2-.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect the wastegate line at the clamp -1-.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

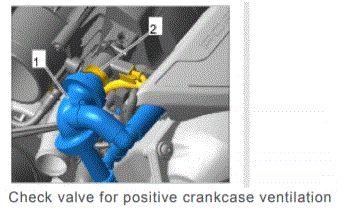

Attach the check valve -1- to the air box and fit a new clamp -2-.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Attach hoses to the check valve and fit with new clamps.
