Damage Symptoms And General Information
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Drive belt removed incorrectly
- Risk of damage to drive belt
→ Only remove the drive belt when it is cold.
→ Replace damaged drive belt.
NOTE:
Drive belt breaks and becomes jammed
- Risk of damage to components (trim panels, electric cables, etc.)
- Sealing ring on crankshaft vibration balancer can start to leak
- Vibration balancer can overheat and lose its strength
→ Following belt breakage, check adjacent components and the interior of the engine compartment for damage, and repair or replace damaged parts if necessary.
→ Find out why the belt broke. Check deflection rollers or crankshaft vibration balancer for prior damage.
→ If the drive belt is jammed, replace vibration balancer.
WARNING:
Rotating components
- Danger of limbs being trapped or severed
→ Disconnect power supply to the drive motor of components or to the battery.
Information

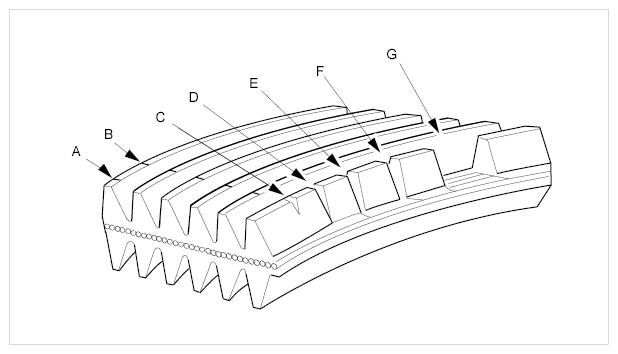

- The following table indicates damage which necessitates replacement .
| Item | Type Of Damage | Explanation |
|---|---|---|
| -A- | Slight Crack In A Rib | Drive Belt Is OK |
| -B- | Hairline Crack That Runs Across The Entire Belt Width, Or The Butt Seam Is Damaged | Replace Drive Belt |
| -C- | Crack Running Down To Half Of Rib Height | Drive Belt Must Be Replaced If There Is More Than One Crack Running Down To Half Of Rib Height. |
| -D- | Crack Running To Base Of Rib | Replace Drive Belt |
| -E- | Crack Running To Traction Cord, Or Sides So Worn That The Traction Cord Becomes Visible | Replace Drive Belt |
| -F- | Rib Detachment | Replace Drive Belt |
| -G- | Rib Fracture | Replace Drive Belt |
