Checking Drive Belt

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

If spark plugs must be changed in the course of maintenance operations, the drive belt should be checked when the spark plugs are removed. The engine can then be cranked easier .

Mark the rolling direction of the drive belt with chalk. → Marking the drive belt

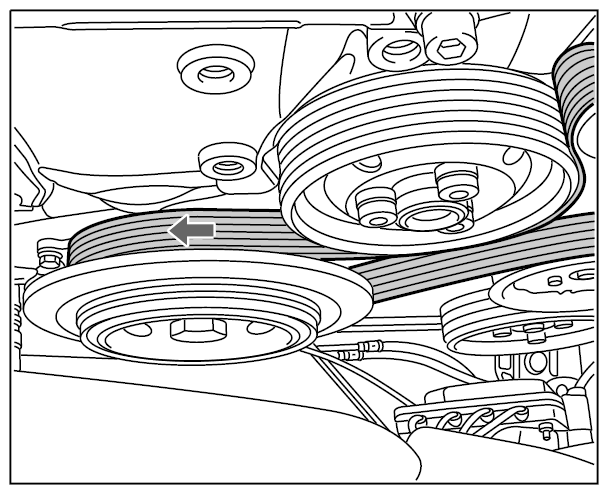

Fig 1: Identifying Drive Belt Marking
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Turn engine at the vibration balancer in the rolling direction using a socket wrench until the chalk mark is at the same position again. While turning at the crankshaft, check the drive belt at the deflection rollers for signs of damage.
When turning the engine, check deflection rollers for smooth operation, intact running track and play. Replace noisy and damaged rollers.
