Technical Values: Pulleys
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

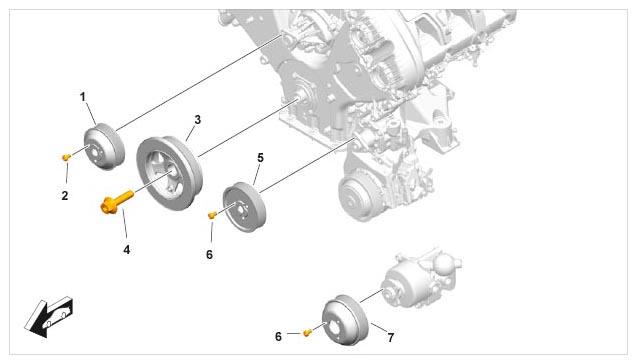

Fig 1: Identifying Water Pump Pulley, Vibration Damper, Power-Steering Pump Pulley, Tandem Pump Pulley And Screws
- Water Pump Pulley
- Screw, M8 x 16 → Tightening Torque: 23 Nm (17 ft. lb.)
- Vibration Damper
- Screw, M18 x 1.5 x 72; Use New Screw; → Tightening Torque: 20 Nm (15 ft. lb.) → Tightening Torque: 50 Nm (37 ft. lb.) → Tightening Torque: 100 Nm (74 ft. lb.) → Torque angle: 180°
- Power-Steering Pump Pulley
- Screw, M8 x 16 → Tightening Torque: 23 Nm (17 ft. lb.)
- Tandem Pump Pulley
