Removing Pulley (Vibration Balancer)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Counter-Hold Tool 9679/3 with the rectangular tube from Holding Wrench 9732 must be inserted into the vibration damper and turned until it locks. → see Fig 1

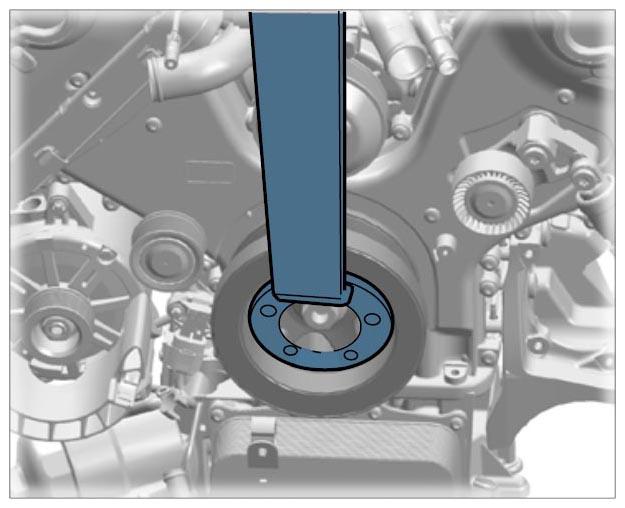

Fig 1: Identifying Vibration Damper Counter-Hold Tool
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the large torque wrench or T-piece -2- and use a tubular handle if necessary -1- .
1. 2.1. Undo the central screw of the damper. Do not use the screw again.
2. 2.2. Use a tubular handle -1- if necessary.

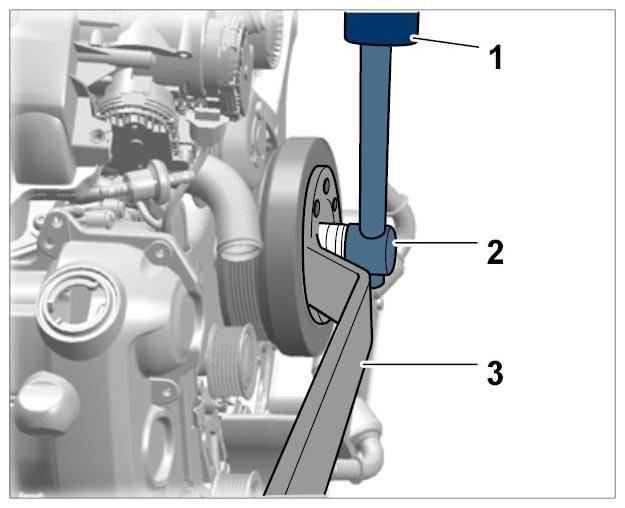

  Fig 2: Identifying Vibration Damper Tool And Large Wrench
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  NOTE:
  Incorrect handling of tools
  - Risk of damage to the body
  → Only use tools approved by Porsche.

  → Always ensure that the tool is seated correctly.

  → Protect the body and interior of the vehicle from damage with protective covers.

  → Cover delicate components with cardboard or sheetmetal panels.

  Information

  Protect the radiator fins using cardboard or a sheetmetal panel to prevent damage.

  Cover wing and peripheral parts to protect them.
3. 2.3. Loosening torque is very high
Remove central screw and pull vibration damper down and forward. → see Fig 3

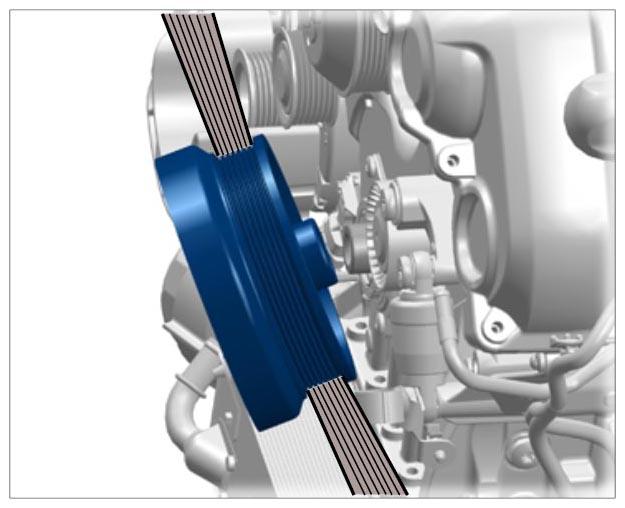

Fig 3: Removing Vibration Damper
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
