Removing Vibration Damper (Crankshaft Pulley)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The pictures shown in this document may differ from the original .

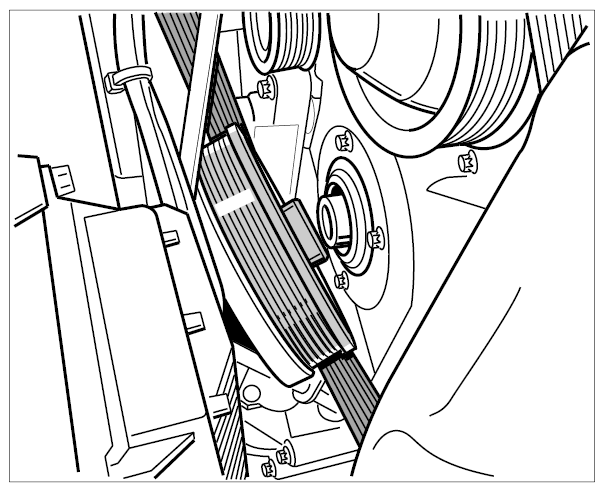

Arm Bracket 9679/1 must be inserted into the vibration damper and turned until it locks. → Arm bracket in vibration damper

Fig 1: Identifying Vibration Damper Arm Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
NOTE:
Incorrect handling of tools
- Risk of damage to the body
→ Only use tools approved by Porsche.

→ Always ensure that the tool is seated correctly.

→ Protect the body and interior of the vehicle from damage with protective covers.

→ Cover delicate components with cardboard or sheetmetal panels.

Information

Protect the radiator fins using cardboard or a sheetmetal panel to prevent damage.

Cover wing and peripheral parts to protect them.

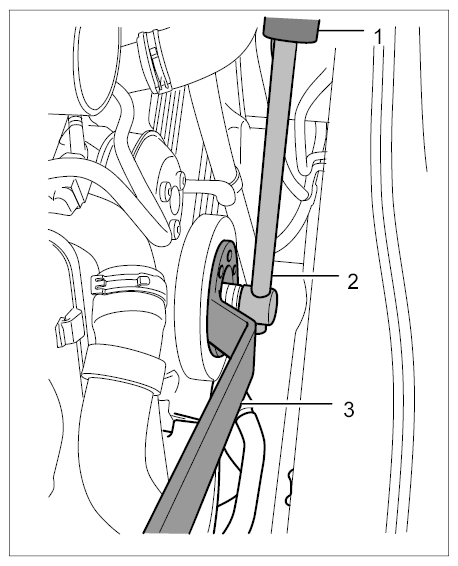

Fit large torque wrench → Large torque wrench on the central screw or T-piece -2- (large socket, width across flats 27) and loosen central screw for balancer. Do not use the screw again. Use a tubular handle -1- , if necessary. Loosening torque is very high.

Fig 2: Installing Torque Wrench On Central Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

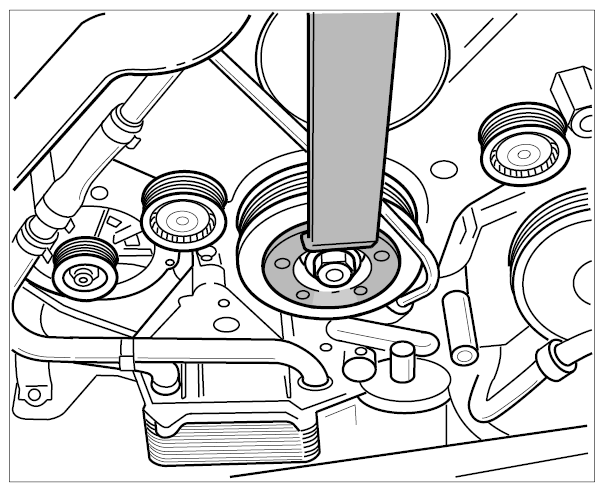

Fig 3: Loosening Vibration Damper Bolt
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

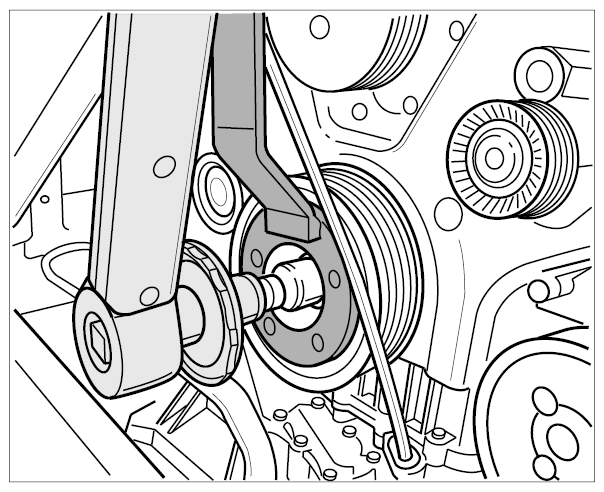

Remove central screw and pull vibration damper down and forward. → Vibration damper

Fig 4: Removing Vibration Damper
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
