Installing Sealing Ring For Crankshaft (On Transmission Side)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Sealing rings become damaged as a result of improper fitting. Do not oil sealing rings on the running surface and do not pull sealing rings off the plastic sleeve.

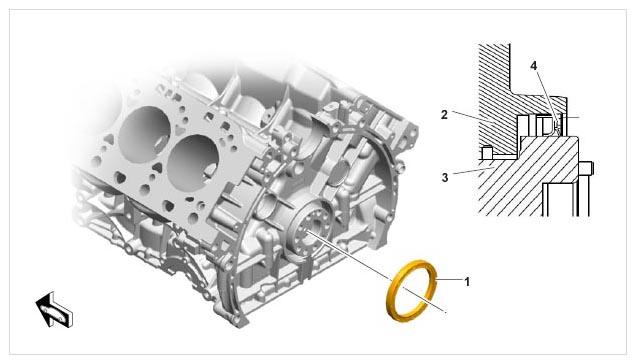

Fig 1: Identifying Radial Shaft Seal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Radial Shaft Seal (Use Protection Cap For Radial Shaft Seal For Fitting; Only Fit When Crankcase Is Screwed On)
Crankcase
Crankshaft
Radial Shaft Seal (Sectional View)

Connect the sealing ring and sleeve to the tool Spacer 9609/2 . → Fitting sealing ring

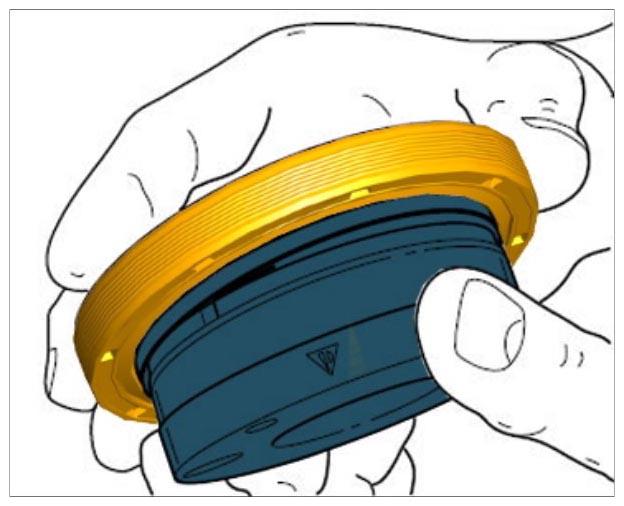

Fig 2: Installing Sealing Ring Onto Tool
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position the centering device Spacer 9609/2 on the crankshaft flange. Pay attention to the centering pin when doing this. Then tighten the two fastening screws to 23 Nm (17 ft. lb.). → Centering tool

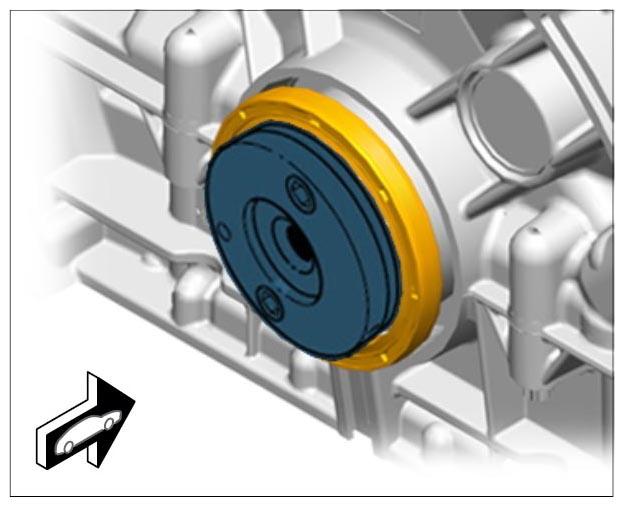

Fig 3: Identifying Centering Tool
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position the retracting bell Pressure Piece 9609/1 and tighten the central screw (a/f 19) to 25 Nm (19 ft. lb.). → Retracting bell

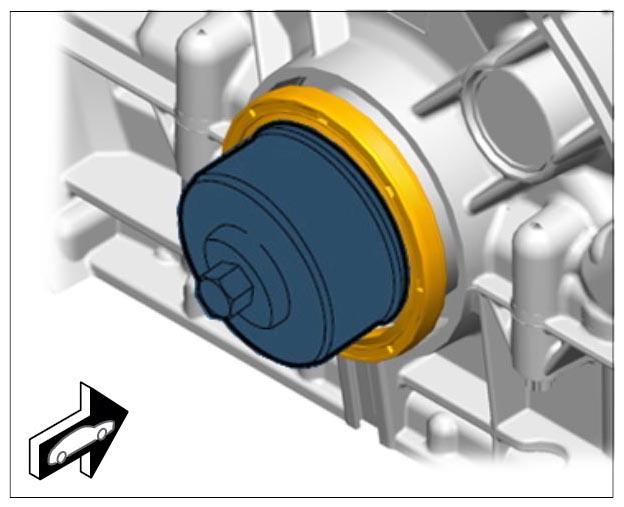

Fig 4: Identifying Retracting Bell
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen the retracting bell and screw it down.
Loosen the two fastening screws on the centering device and remove the tool. Remove sleeve from the tool.
