Removing Crankshaft Sealing Ring For Pulley/Vibration Balancer

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the four fastening screws -arrows-  and remove the cover with sealing ring.

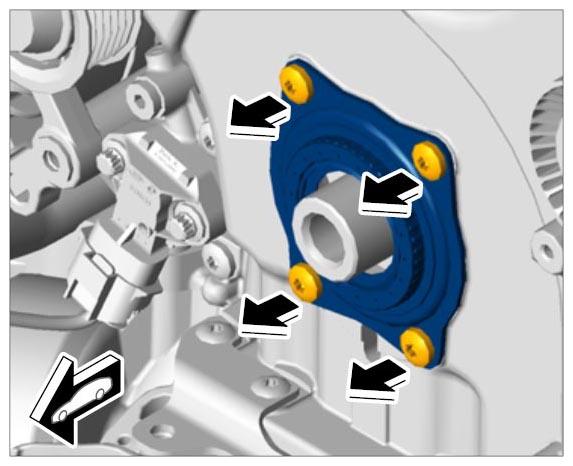

    Fig 1: Removing Crankshaft Cover
    G09932239Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Clean the sealing surface of the sheetmetal cover.
