Installing Belt Tensioner

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Screw a screw (M8 x 50) into the new belt tensioner until the belt tensioner is slightly tensioned. -arrow-

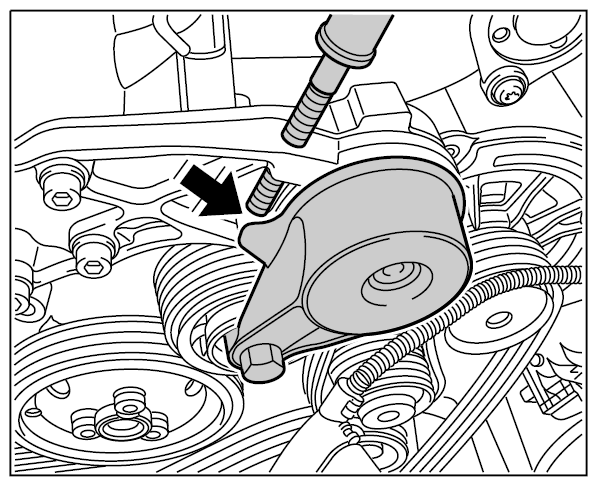

    Fig 1: Locating Belt Tensioner Screw
    G09932222Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit belt tensioner.
  3. Tighten fastening screws for the belt tensioner. -arrows- → Tightening Torque: 25 Nm (19 ft. lb.)

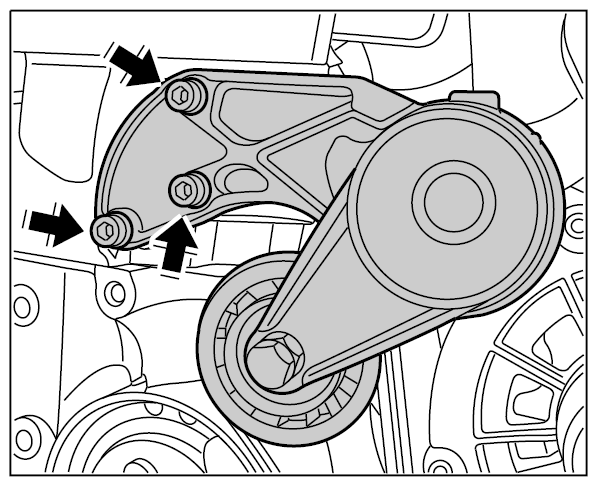

    Fig 2: Locating Belt Tensioner Screws
    G09932223Courtesy of PORSCHE CARS NORTH AMERICA, INC.
