Removing Belt Tensioner

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

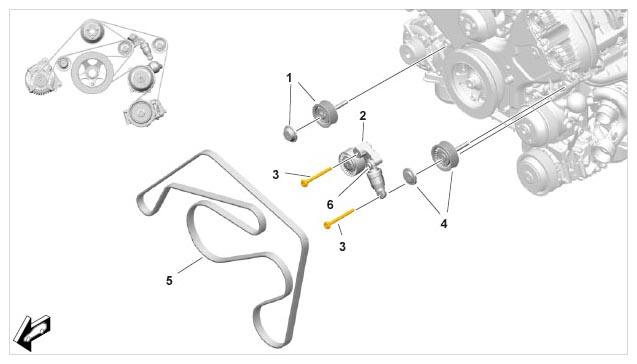

  1. Unscrew screws -3-  and remove belt tensioner.
    Fig 1: Identifying Belt Drive Components
    G09932224Courtesy of PORSCHE CARS NORTH AMERICA, INC.

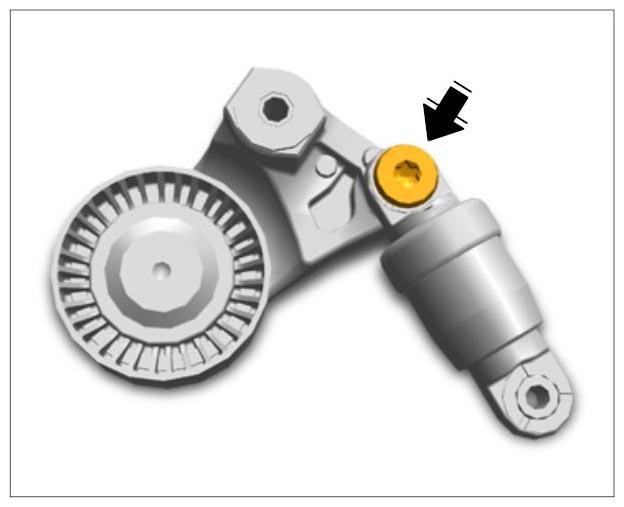

  2. The connecting screw -arrow-  does Not  have to be loosened in order to remove the belt tensioner.
    Fig 2: Locating Connecting Screw
    G09932225Courtesy of PORSCHE CARS NORTH AMERICA, INC.
