Installing Belt Tensioner

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install belt tensioner.
    1. 1.1. Position belt tensioner -2-  .
    2. 1.2. Tighten screws -3-  .

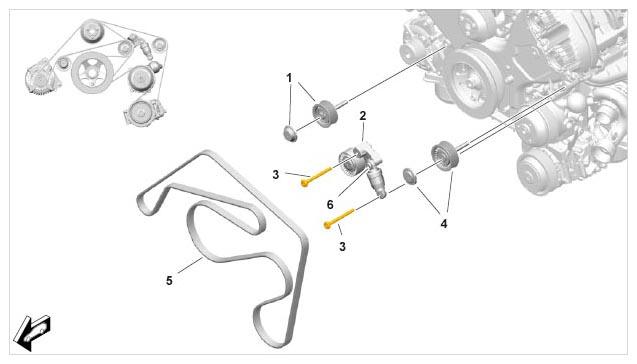

      Fig 1: Identifying Drive Belt, Belt Tensioner And Screws
      G09932226Courtesy of PORSCHE CARS NORTH AMERICA, INC.
