Assembly Overview - Drive Plate

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

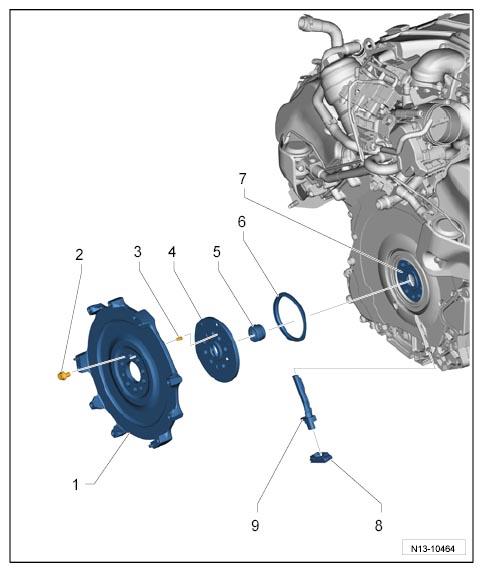

Fig 1: Overview Of Drive Plate
G09931615Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Drive Plate
  2. Screw Replace → Initial Tightening: 60 Nm (44 ft. lb.) → Final Tightening: +90°
  3. Dowel Pin
  4. Sensor Wheel For Engine Speed Sender
  5. Needle-Roller Bearing
  6. Shaft Sealing Ring Replace
  7. Crankshaft
  8. Rubber Stopper
  9. Engine Speed Sender
