Removing Drive Plate

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mark installation position of the drive plate with respect to the crankshaft using a felt-tip pen.
  2. Block drive plate.
    1. 2.1. Toothed Segment 95381  must be attached to a threaded bore at the bottom of the oil guide housing so that at least one tooth engages with the ring gear.
  3. Remove drive plate -2-  .
    1. 3.1. Loosen and unscrew screws -1-  in diagonally opposite sequence and in several steps.
    2. 3.2. Remove drive plate.

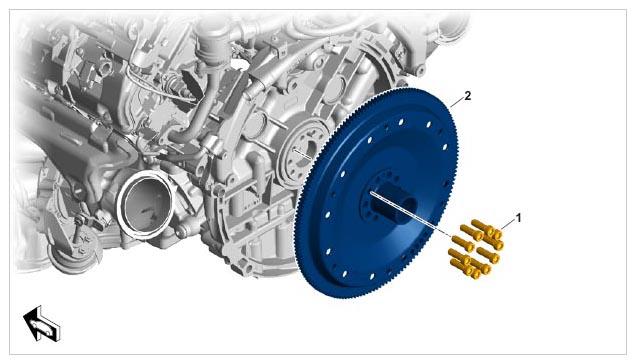

      Fig 1: Identifying Drive Plate Screws
      G09932216Courtesy of PORSCHE CARS NORTH AMERICA, INC.
