Drive Plate

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

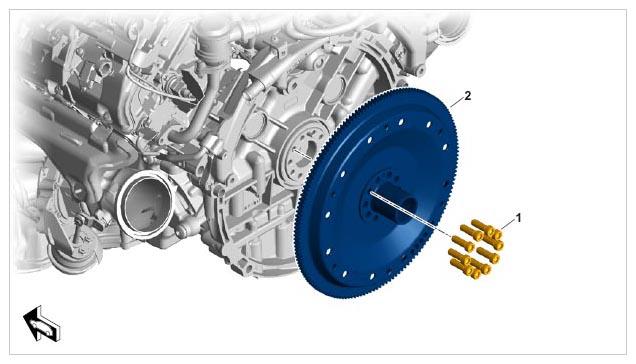

Fig 1: Identifying Drive Plate Screws
G09932215Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Drive Plate To Engine. Tighten Screws In Diagonally Opposite Sequence/Screw In All Screws By Hand → Initial Tightening: 60 Nm (44 ft. lb.) → Final Tightening: +90°+/-10°
  2. Drive Plate
