Replacing Speed Sensor Wheel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. If the drive plate -6-  for the inductive pickup (speed sender) was removed from the crankshaft, it must always be replaced  . The drive plate must never be reused.

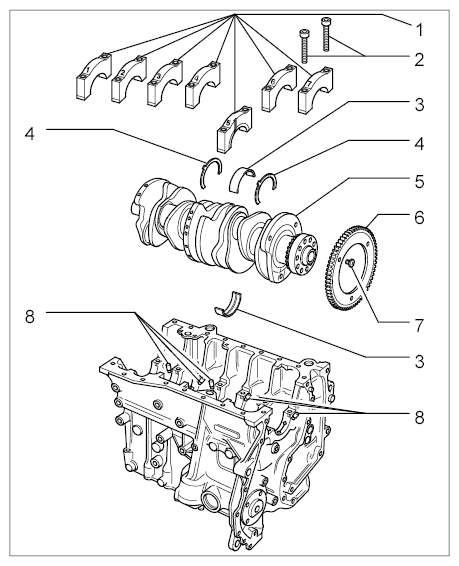

    Fig 1: Identifying Crank Drive (V6 DFI Engine)
    G09932130Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. Crankshaft Bearing Covers
    2. Internal Serration Screw On Crankshaft Bearing Cover
    3. Bearing Shell
    4. Thrust Washer For Bearing Cover 5
    5. Crankshaft
    6. Drive Plate For Inductive Pickup
    7. Countersunk Screw On Drive Plate For Inductive Pickup → Initial Tightening: 10 Nm (7.5 ft. lb.) → Torque Angle: 90°
    8. Oil Spray Nozzle
  2. Tighten the countersunk screws -7-  on the drive plate to the specified Tightening Torque.
