Allocation And Marking Of Bearing Shells On Crankshaft
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
The bearing shell for the cylinder block (top bearing shell) must always be inserted in the yellow color.
| Letter On The Cylinder Block | Letter On The Crankshaft Web | Color Identification Of The Bearing Shell For Bearing Cover | Color Identification Of The Bearing Shell For Cylinder Block |
|---|---|---|---|
| A, B, C, D, E | R | Red | Yellow |
| A, B, C, D, E | G | Red | Yellow |
| A, B, C, D, E | B | Yellow | Yellow |
| A, B, C, D, E | V | Blue | Yellow |
| G, H, I | R | Red | Yellow |
| G, H, I | G | Red | Yellow |
| G, H, I | B | Yellow | Yellow |
| G, H, I | V | Blue | Yellow |
| K, L, M | R | Red | Yellow |
| K, L, M | G | Yellow | Yellow |
| K, L, M | B | Blue | Yellow |
| K, L, M | V | Violet | Yellow |
| Bearing Cover | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
|---|---|---|---|---|---|---|---|
| Letters On The Cylinder Block | G | H | H | H | G | E | G |
| Letters On The Crankshaft Web | G | B | B | V | B | B | G |
| Color Identification Of The Bearing Shell For Bearing Cover | Red | Yellow | Yellow | Blue | Yellow | Yellow | Red |
The first letter is for bearing cover one, the second for bearing cover two, and so on.

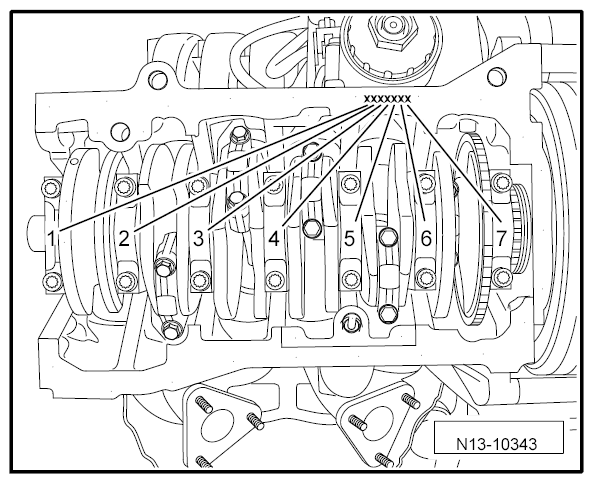

Marking On Cylinder Block:
Letters are shown on the sealing face of the oil pan.
