Checking Axial Play Of Crankshaft
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

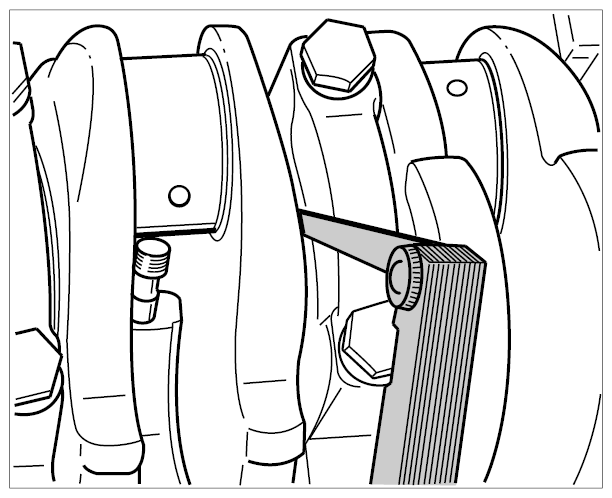

- Measure the axial bearing play (bearing cover 5) between the thrust washer and the crank web with a feeler gauge - see Fig 1-. When measuring the amount of play, turn the crankshaft by hand in the direction of travel. If the wear limit is reached or exceeded, dismantle the bearing cover and perform the measurement again with new thrust washers. If the measured values from the last measurement show no improvement, the crankshaft and bearing shells must be replaced.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
| Connecting Rod Bearings (Crankshaft Journals) |
Main Bearing (Shaft Journals) |
| 53.968 mm |
59.958 mm |
| Crankshaft |
Axial Play |
| |
New |
Wear limit |
| Bearing 5 (guide bearing) |
0.07 mm |
0.30 mm |
