Measuring Axial Play Of Crankshaft

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Dial Gauge Nr. 136 Pos. 1  with Universal Dial Gauge Bracket VW 387  must be screwed to the cylinder block and placed against the crank arm.

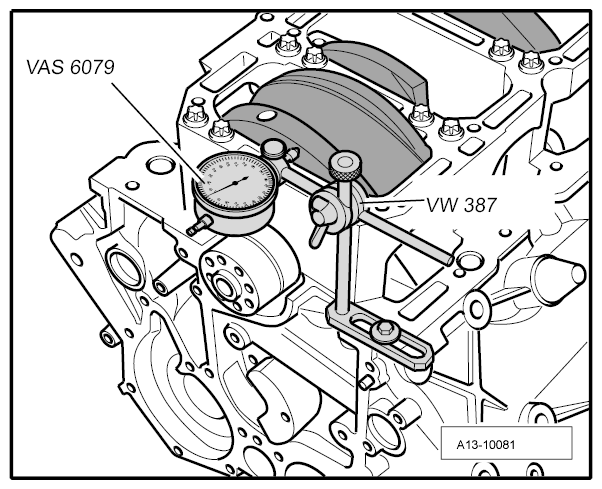

    Fig 1: Checking Crankshaft Axial Play
    G09932109Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Press the crankshaft against the dial gauge by hand.
  3. Set the dial gauge to "0  ".
  4. Press the crankshaft off the dial gauge and read off the measured value.
Axial Play:  0.15...
0.25 mm
