Component Overview Of Crankshaft

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

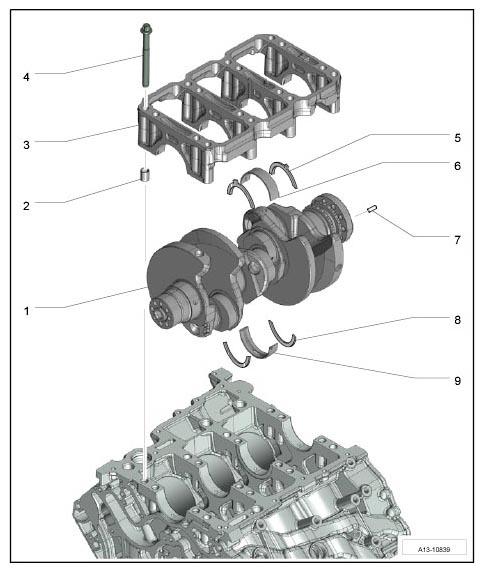

Fig 1: Overview Of Crankshaft
G09932113Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Crankshaft
  2. Dowel Sleeve
  3. Guide Frame
  4. Screw → Initial Tightening: 30 Nm (22 ft. lb.) → Final Tightening: 50 Nm (37 ft. lb.) +180°
  5. Thrust Washer
  6. Bearing Shell, Guide Frame
  7. Dowel Pin
  8. Thrust Washer
  9. Bearing Shell, Cylinder Block
