Checking Piston-Ring End Clearance
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

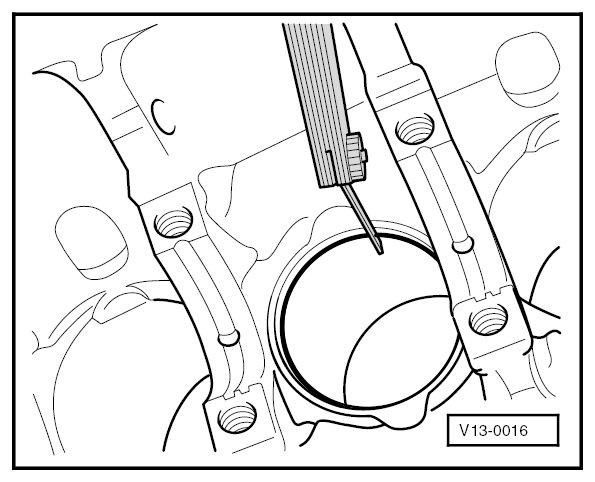

Push in the piston ring at a right angle to the cylinder wall from above until it is approx. 15 mm away from the edge of the cylinder.
| Piston Ring |
New [mm] |
Wear Limit [mm] |
| 1st Compression Ring |
0.20... 0.30 |
0.80 |
| 2nd Compression Ring |
0.50... 0.70 |
0.80 |
| Oil Scraper Ring |
0.25... 0.50 |
Not Yet Determined |
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
