Removing Pistons

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The pistons are removed in turn .
The pistons, connecting rods and connecting rod caps are marked with a felt-tip pen so that they do not get mixed up .
Pistons and connecting rods are laid on a clean surface in cylinder order .
Con-rod bolts must always be replaced .
If being reinstalled, used bearing shells must not be mixed up .
Connecting rod bearing shells should always be replaced .

Remove piston.

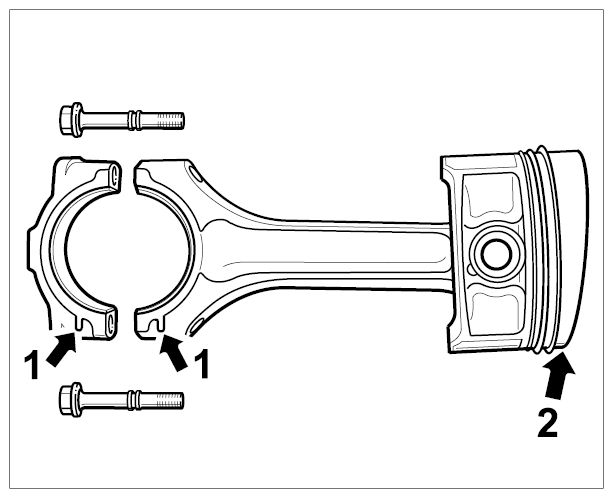

1. Connecting Rods
2. Pistons

  Fig 1: Locating Piston And Connecting Rods
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Turn the crankshaft so that the crankshaft journal of the piston to be removed is standing straight up.
2. 1.2. Remove connecting rod bolts. Remove connecting rod bearing caps and place on a clean surface, arranged according to cylinder.
3. 1.3. Press the piston out of the cylinder from above (using the handle of a hammer for example) and support it from below with your hand.
4. 1.4. Remove one piston after another and mark them according to the respective cylinder. Place the pistons on a clean surface.
5. 1.5. Repeat this procedure for all pistons.
