Assembly Overview - Pistons And Connecting Rods
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

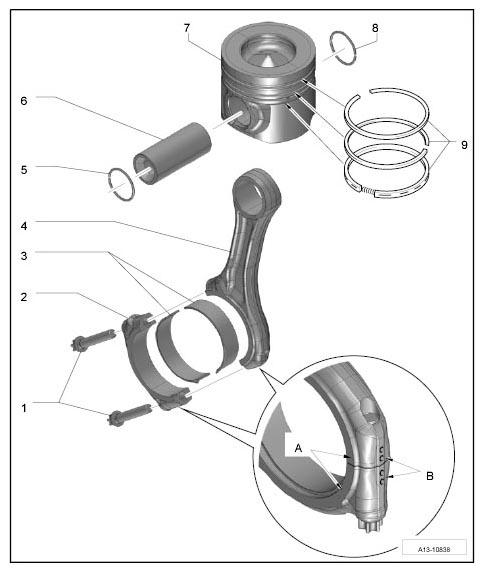

- Fastening Screw For Bearing Cover → Tightening Torque: 35 Nm (26 ft. lb.) +90°
- Oil thread and contact surface
- Connecting-Rod Bearing Cap
- Mark allocation with paint/colored marker for re-installation -B-
- Always check the following during fitting: The wide collar -A- must be facing the same side on the connecting rod and connecting-rod bearing cap
- Bearing Shells/Worn Bearing Shells Must Be Replaced
- Check installation position
- Check version: Upper bearing shell (towards the piston) must be made of wear-resistant material.
- Identifying feature of new bearing shells: Black line on running surface close to the connection point
- Check that retaining lugs are seated securely.
- Connecting Rod
- Mark cylinder allocation with paint/colored marker -B-
- Axial play for each con-rod pair: new: 0.20....0.44 mm
- Only replace in sets
- Always check the following during fitting: The wide collar -A- must be facing the same side on the connecting rod and connecting-rod bearing cap
- Piston-Pin Circlip Replace
- Piston Pin
- Heat stiff pistons to 60 °C
- Remove and install using Drift VW 222 A .
- Piston
- Mark installation position and allocation to cylinder
- Replace piston if piston crown or shank is cracked
- Piston-Pin Circlip Replace
- Piston Rings
- Offset gap by 120°
- Remove and install using piston ring pliers
- Installation position: "TOP" marking or side with lettering towards piston crown
