Checking Piston-Ring End Clearance

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Slide in the ring at a right angle to the cylinder wall from above until it is approx. 50 mm away from the edge of the cylinder. Use a piston with no rings for sliding into the cylinder.

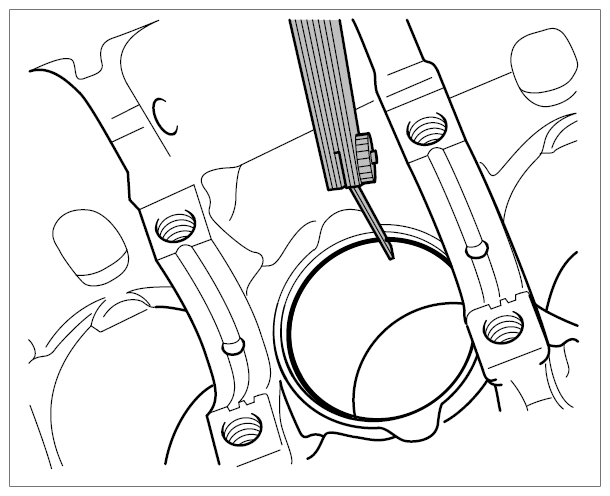

Fig 1: Checking Piston-Ring End Clearance
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Piston-Ring Dimensions In mm	New In mm	Wear Limit In mm
1st Compression Ring	0.25... 0.40	0.60
2nd Compression Ring	0.70... 0.90	1.20
Oil Scraper Ring	0.25... 0.50	0.70
