Check Pistons

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Using a 75... 100 mm outside micrometer, measure approx. 10 mm from the lower edge, perpendicular to the piston pin axis.
- Max. deviation from nominal measurement: 0.05 mm.

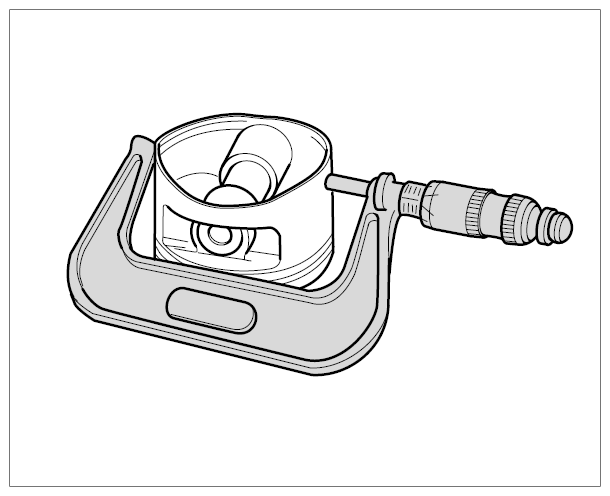

  Fig 1: Checking Pistons
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Grinding Dimension In mm

Piston Diameter In mm

Basic Dimension

82.924... 82.936 ⁽¹⁾

Repair Stage

82.964... 82.976 ⁽¹⁾

⁽¹⁾	Dimensions without graphite coating (thickness = 0.02 mm). Some of the graphite coating wears off .
