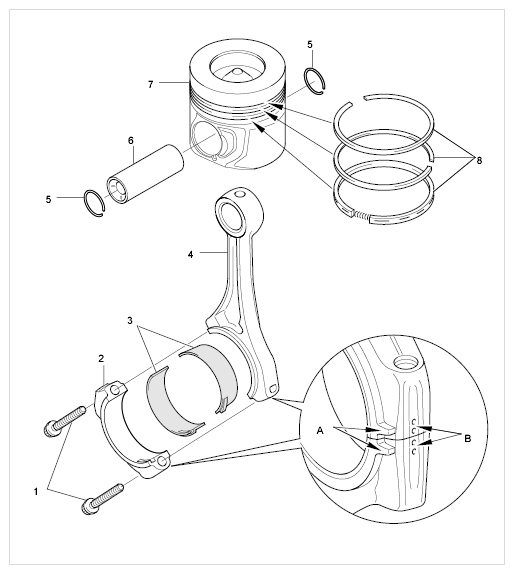

Component Overview Of Pistons And Connecting Rods
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| -1- | Connecting-Rod Bearing Screws | 2 | Replace Oil Thread And Contact Surface Tighten To 30 Nm (22 Ft. Lb.) For Measuring Radial Play, But Do Not Turn Any Further Measure Radial Play |
|
| -2- | Connecting Rod Bearing Cap | 1 | Do Not Confuse Mark Allocation To Cylinder -B- . |
Check Installation Position Of Welded Marking -A- . |
| -3- | Bearing Shells | 2 Per Piston | Check Installation Position! Upper Bearing Shell (Towards The Piston) Is Made Of Wear-Resistant Material. New Bearing Shell Is Identified By A Black Line. Replace Worn Bearing Shells! |
Tighten To 30 Nm (22 Ft. Lb.) For Measuring Radial Play, But Do Not Turn Any Further |
| -4- | Connecting Rod | 1 | Mark Allocation To Cylinder -B- . | Only replace in sets Check Installation Position Of Welded Marking -A- . Axial Play For Each Con-Rod Pair, New: 0.20....0.44 Mm |
| -5- | Circlip | 2 Per Piston | ||
| -6- | Piston Pin | 1 | Heat Stiff Pistons To Approx. 60°C Remove With A Mandrel |
Install With A Mandrel |
| -7- | Pistons | 1 | With Combustion Chamber Mark Installation Position And Allocation To Cylinder Check Replace If Piston Shank Is Cracked |
Install With Piston-Ring Restraining Strap Check Piston And Cylinder Dimensions Check Condition Of Piston In TDC Position Check Cylinder Bore |
| -8- | Piston Rings | 3 Per Piston | Remove Using Piston-Ring Pliers | Offset Gap By 120° Install Using Piston-Ring Pliers "TOP" Marking Must Be Facing The Piston Crown Check End Clearance Check Vertical Clearance |
