WM 131003 Measuring Pistons (Includes Measuring Cylinder Bore) [Cayenne S Hybrid & Cayenne Tip (3.0]: Tools

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Designation Type Number Description

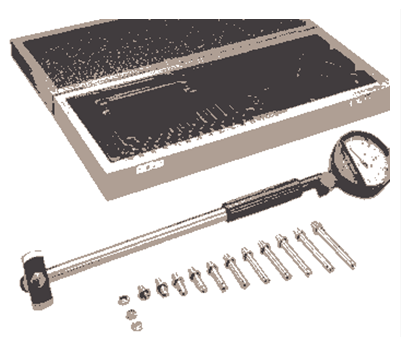

Subito Precision Bore Gauge Commercially Available Tool Nr. 134
G09932038

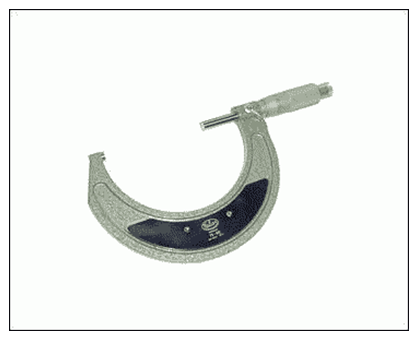

Micrometer Commercially Available Tool Nr. 135 Pos. 4
G09932039

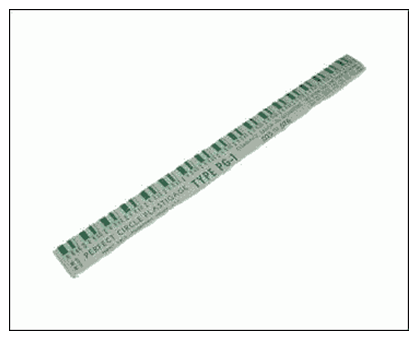

Plastigage Commercially Available Tool Nr. 52 Pos. 1
G09932040
