Measuring Cylinder Bore

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Using a Subito Precision Bore Gauge Nr. 134 , measure the cylinder bore crosswise at three places in transverse direction -A- and longitudinal direction -B- .
Maximum deviation from nominal size: 0.08 mm .

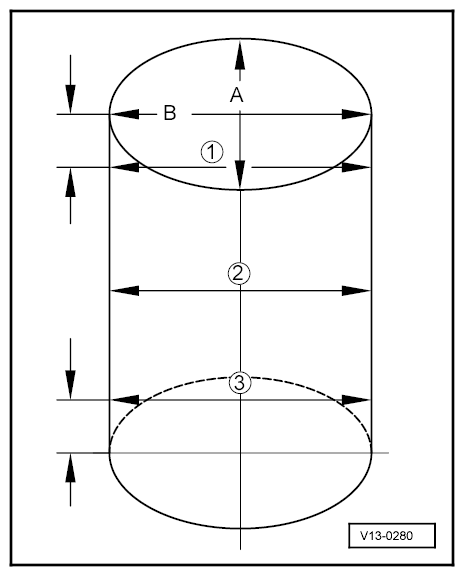

Fig 1: Identifying Cylinder Bore Dimension
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
