Checking Pistons

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Using a Micrometer Nr. 135 Pos. 4 , measure approx. 10 mm from the lower edge, perpendicular to the piston pin axis.
Maximum deviation from nominal size: 0.03 mm .

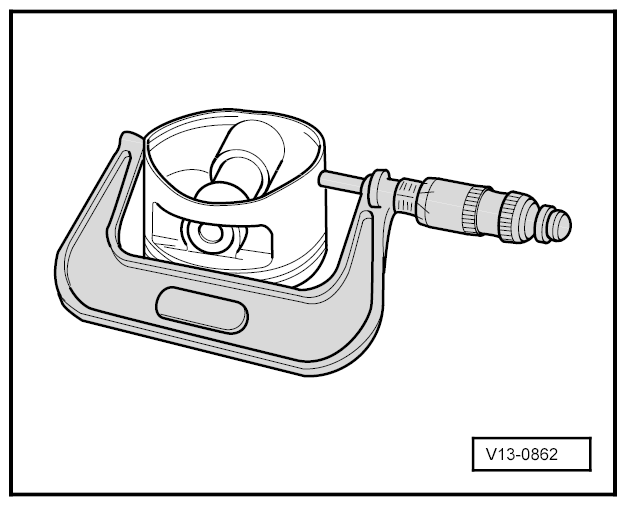

Fig 1: Checking Pistons
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Grinding Size	Piston Diameter mm	Cylinder Bore mm
Basic Size	84.49	84.51
