Preliminary Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain coolant. → 193817 DRAINING AND FILLING COOLANT (INCLUDES BLEEDING)
  2. Press tensioning arm of tensioning roller in -direction of arrow-  . In non-tensioned position, screw one M8 x 59 screw into the threaded bore -A-  .

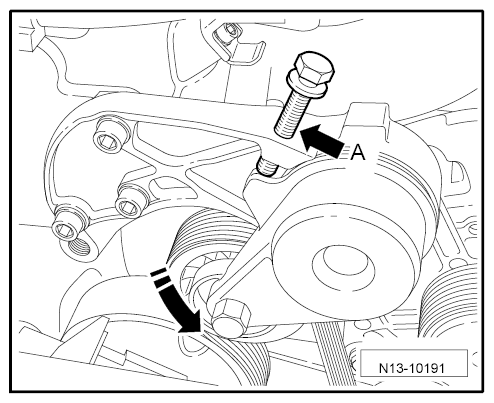

    Fig 1: Loosening Tensioning Roller Tensioning Arm
    G09933076Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove tensioning roller for poly-V-belt.
    1. 3.1. Unscrew screws -arrows-  and remove tensioning roller.

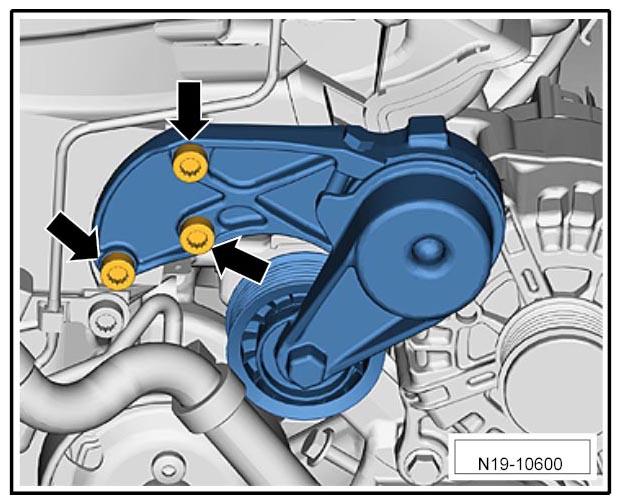

      Fig 2: Locating Tensioning Roller Screws
      G09933077Courtesy of PORSCHE CARS NORTH AMERICA, INC.
