Removing Coolant Temperature Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Expose access to temperature sensor -3-  .
    1. 1.1. Unclip oxygen sensor cable. Loosen the holder.

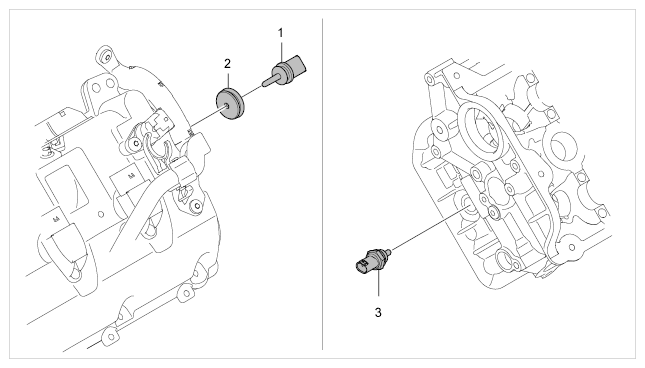

      Fig 1: Identifying Temperature Sensor And Sleeve
      G09933081Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      1. Temperature sensor for engine compartment (installation position of cylinder 8)
      2. Sleeve
      3. Temperature sensor (installation position of cylinder 4)
  2. Pull off cable plug.
  3. Remove coolant temperature sensor from the cylinder head.
