Installing Coolant Temperature Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The tightening specifications for the basic engine are stored centrally (→ 1001IN Tightening TorqueS, TIGHTENING SEQUENCES, ASSEMBLY OVERVIEWS ).

Tightening Torques and assembly instructions for other assemblies (e.g. chassis, electrics, transmission or body) or for peripheral engine equipment can be found in the corresponding documents.

Fit coolant temperature sensor -3- in the cylinder head. Tighten coolant temperature sensor.

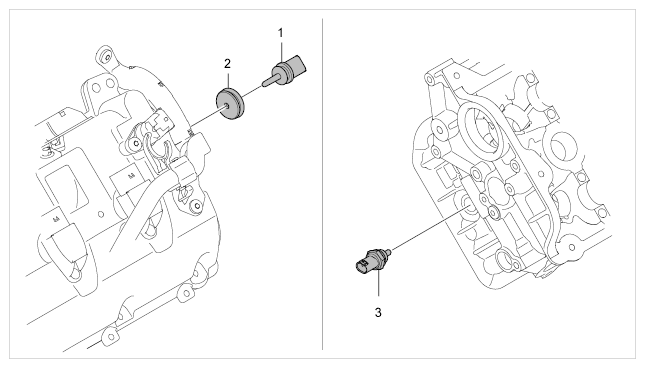

Fig 1: Identifying Temperature Sensor And Sleeve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Temperature sensor for engine compartment (installation position of cylinder 8)
2. Sleeve
3. Temperature sensor (installation position of cylinder 4)
Peripheral equipment is installed in reverse order to removal.
