Installing Radiator

Information

Replace sealing rings, seals and O-rings.

Do not open the air conditioning system if at all possible when Removing The Radiator Module  . Do not bend the lines.

Do not bend the lines when Installing The Radiator Module  .

Information

A second person is required for removing and installing the radiator.

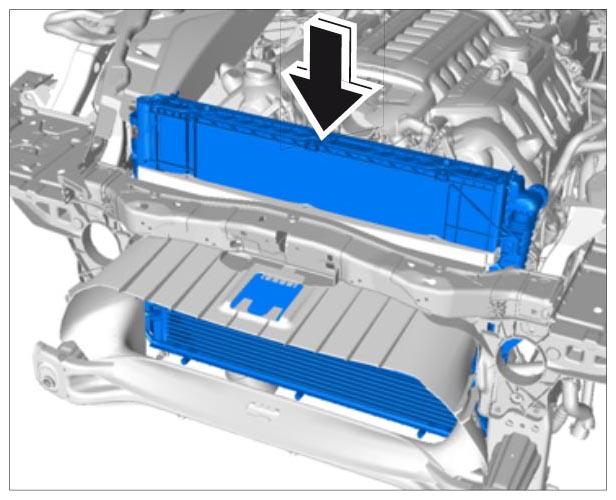

1. Carefully push in the radiator from above.
   Fig 1: Installing Radiator

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

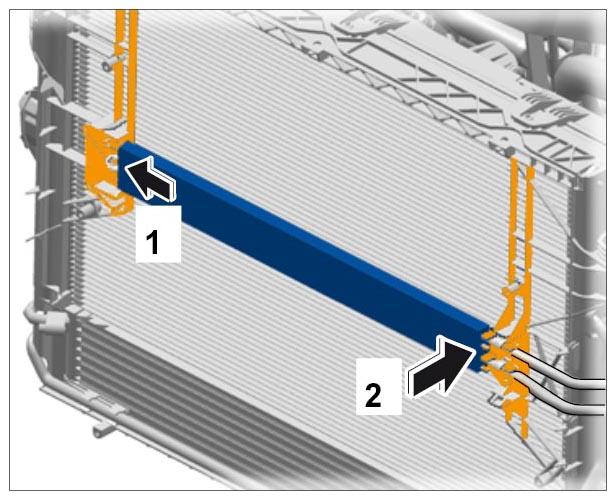

2. Secure the power-steering cooler. To do this, push the power-steering cooler from left to right into the holder -1-  and then clip the lines into the holder -2-  .

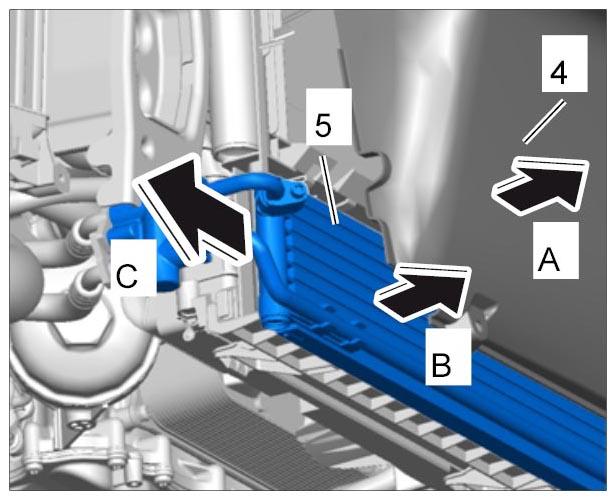

3. Clip ATF cooler -5-  into the radiator bracket.
   Fig 2: Installing ATF Cooler

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

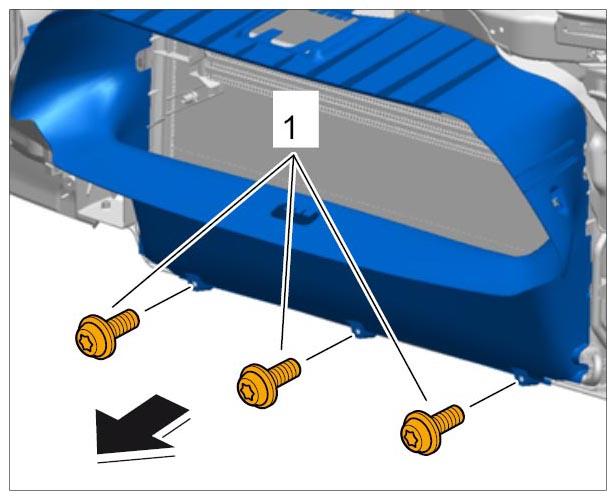

4. Secure air guide → Unscrewing fastening screws  . → INSTALLING CENTRE AIR GUIDE  - section on "Installing"
   Fig 3: Installing Air Guide Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   Fig 4: Locating Power-Steering Cooler Line Holders

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

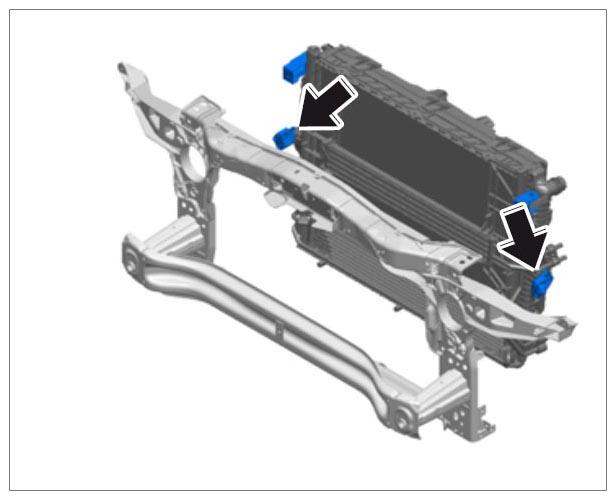

5. Slide the holders into the rubber sleeve for the radiator at the left and right sides -arrows-  .
   Fig 5: Locating Radiator Supports

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

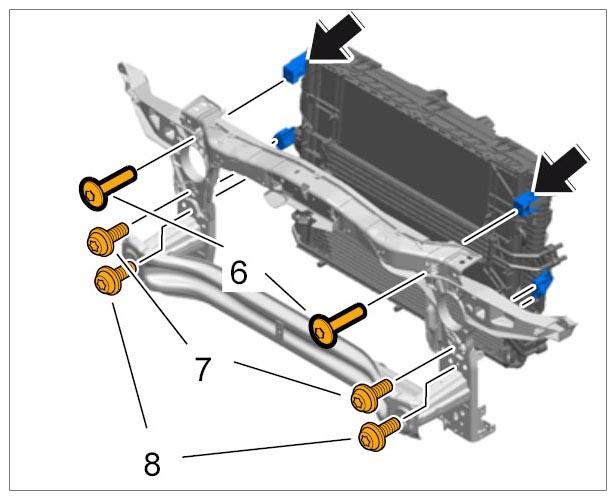

6. Install both holders -arrows-  at the left and right of the radiator.
7. Tighten fastening screws -6-  . Tightening Torque 5 Nm (3.5 ft. lb.)
8. Tighten fastening screws -7 and 8 -  . Tightening Torque 25 Nm (19 ft. lb.)
   Fig 6: Installing Radiator Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

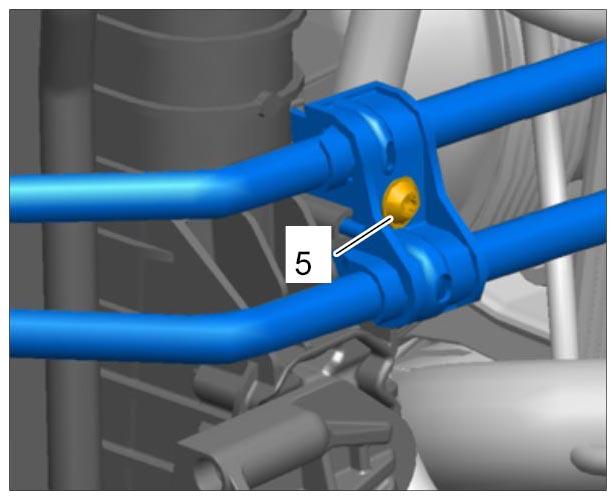

9. Position the holder and tighten the fastening screw -5-  used to secure the holder for the power-steering cooler lines.

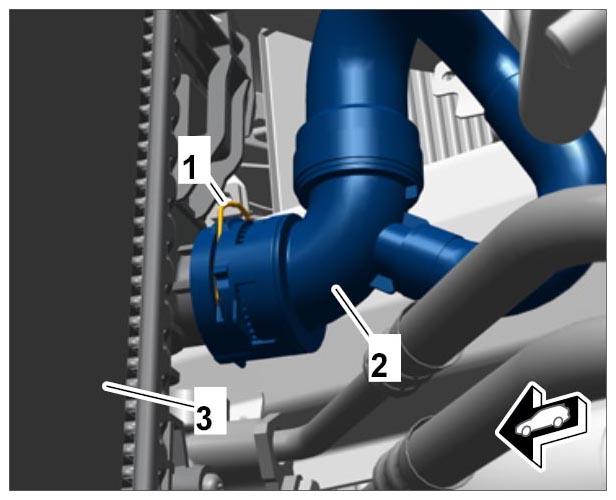

10. Fit coolant hose -2-  on the radiator -3-  and lock safety clip -1-  .
    Fig 7: Identifying Lower Right Coolant Hose

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Fig 8: Identifying Power-Steering Cooler Holder Screw

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

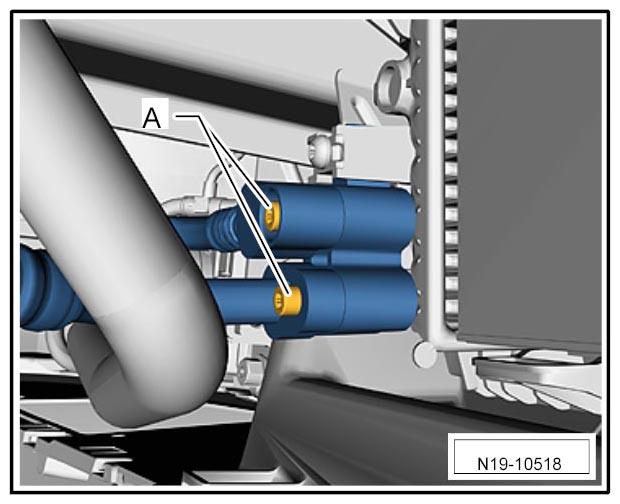

11. Fit refrigerant lines -A-  on the radiator.
    Fig 9: Identifying Refrigerant Line On Radiator

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

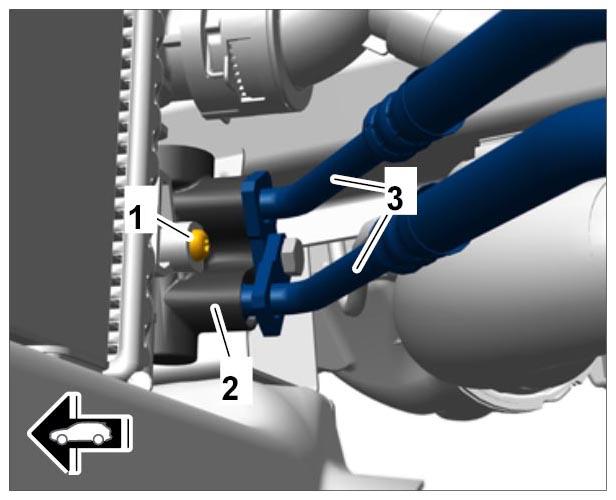

12. Fit holder -2-  with ATF lines connected -3-  and tighten screw -1-  .
    Fig 10: Installing ATF Lines

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
13. Secure coolant line holder -arrow -  .
    Fig 11: Locating Coolant Line Holder

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

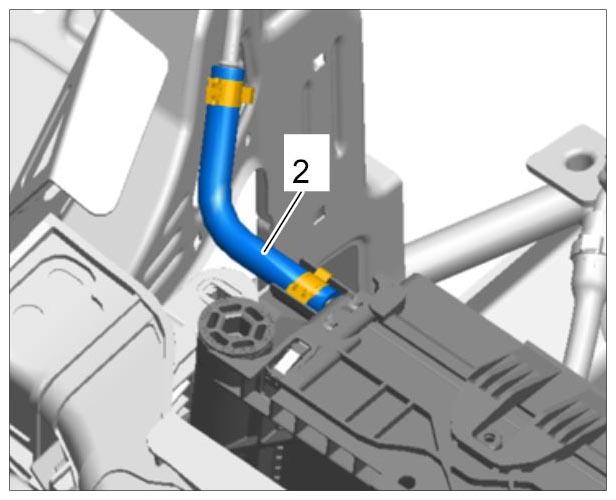

14. Slide breather hose -2-  onto the right side of the radiator and fit hose clamp.
    Fig 12: Identifying Breather Hose On Radiator

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

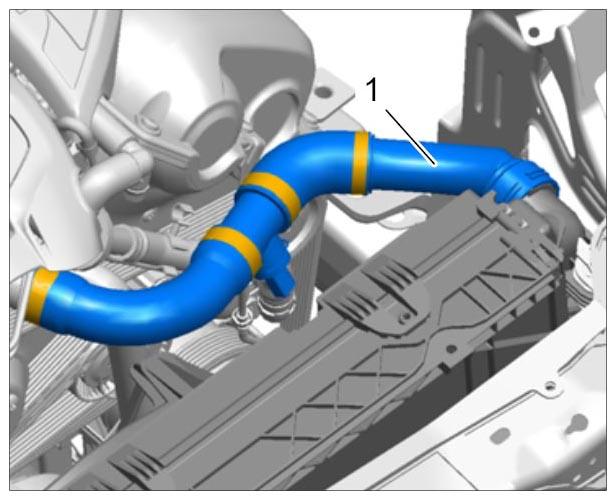

15. Push on coolant hose -1-  and then slide on the safety clip for the adapter. The safety clip must lock with an audible click.
    Fig 13: Identifying Coolant Hose On Radiator

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
