Removing Front Coolant Pipe

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Drain coolant. → 193817 DRAINING AND FILLING COOLANT (INCLUDES BLEEDING)
Remove poly-V-belt for compressor. → 137819 REMOVING AND INSTALLING POLY-V-BELT FOR COMPRESSOR
Remove front left coolant pipes. → REMOVING FRONT LEFT COOLANT PIPES - section on "Removing"
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.

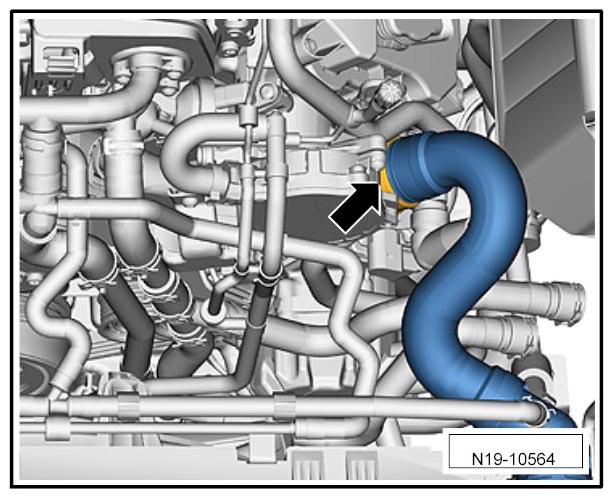

Remove coolant hose from the front coolant pipe by lifting up the retaining clip -arrow- .

Fig 1: Locating Coolant Hose Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

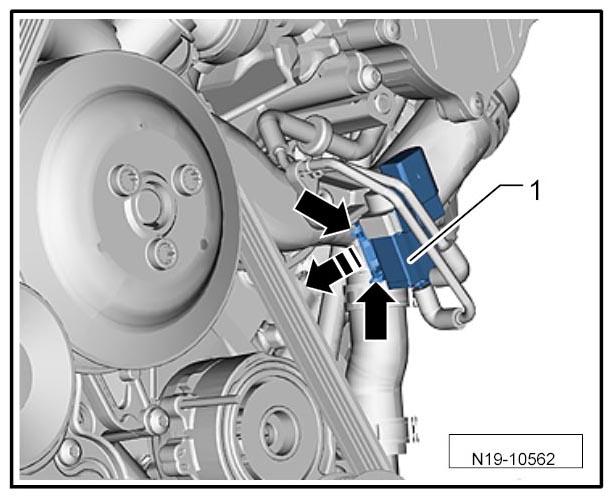

Press the locking mechanism -arrows- together and pull off valve for coolant pump -1- .

Fig 2: Pulling Coolant Pump Valve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.

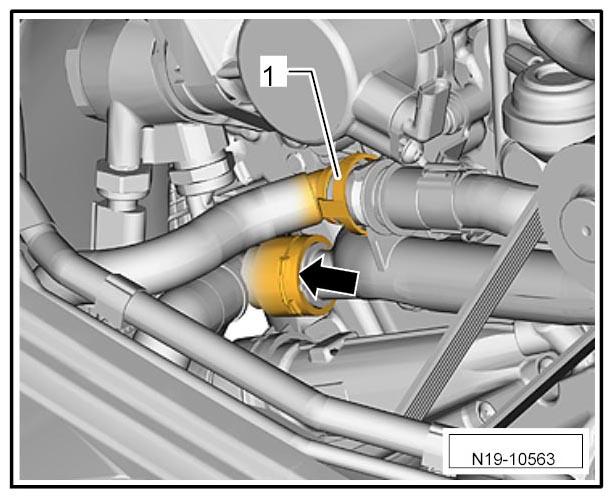

Disconnect secondary-air hose -1- and coolant hose -arrow- .

Fig 3: Locating Secondary-Air Hose
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

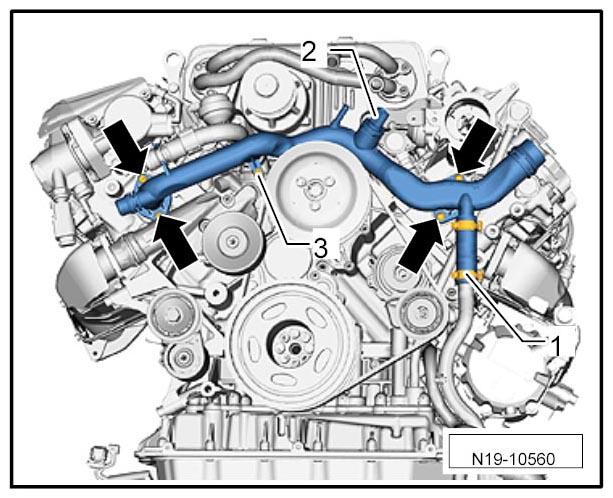

Loosen hose clamp -1- and disconnect electric plug connection -2- at the coolant temperature sensor.
Unscrew screw -3- and fastening screws -arrows- .

Swivel coolant pipe forward and lift it up off the engine.

Fig 4: Pulling Coolant Pipe
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
