Removing Coolant Pipes From Compressor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front engine cover.
  2. Remove front sound insulation. → 108019 REMOVING AND INSTALLING ENGINE GUARD
  3. Open the cap on the coolant reservoir.
  4. Place a drip tray under the engine.
    WARNING: Hot fluid
    • Danger of scalding

    → Let the fluid cool down.

    → Wear personal protective gear.

  5. Clamp off coolant hose using Hose Clamp 3094  and remove it from the coolant pipes on the compressor by releasing the hose clips -arrows-  .

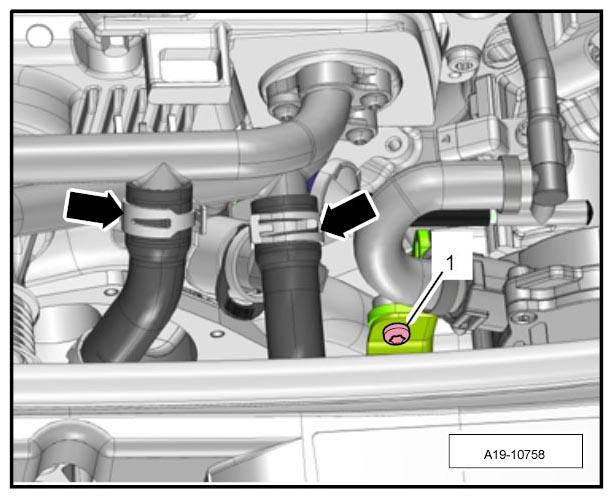

    Fig 1: Locating Coolant Hose Clamps
    G09933047Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Unscrew screws -1-  and -2-  and remove coolant pipes.

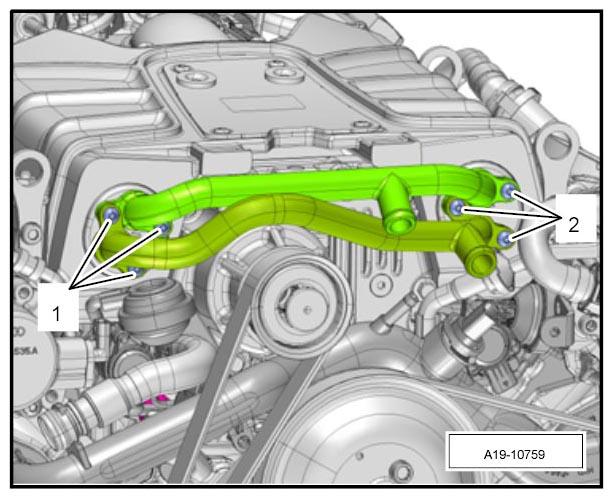

    Fig 2: Identifying Coolant Pipes
    G09933048Courtesy of PORSCHE CARS NORTH AMERICA, INC.
