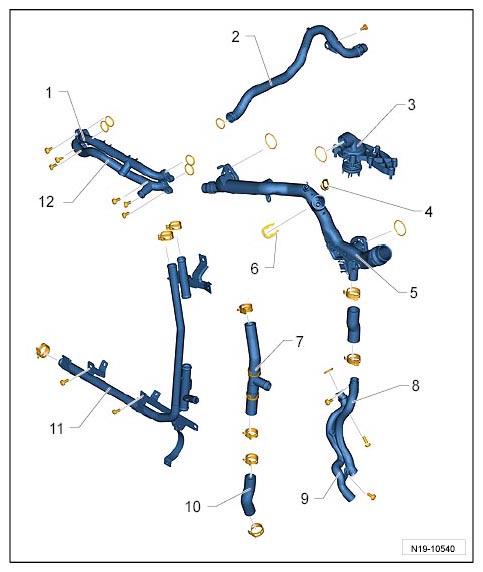

Assembly Overview - Coolant Pipes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
- Replace O-rings and seals.
- Pull plug-in couplings to make sure they are seated securely.
- Tightening Torques for M6 screws: 10 Nm (7.5 ft. lb.)
- Tightening Torques for M8 screws: 20 Nm (15 ft. lb.)
- Upper Coolant Pipe On Compressor
- Upper Coolant Pipe
- Coolant Regulator With Housing
- Coolant Temperature Sensor
- Front Coolant Pipe
- Retaining Clip
- T-Piece For Power And Control Electronics For Electric Drive
- Return Pipe For Engine Oil Cooler
- Supply Pipe For Engine Oil Cooler
- Hose For Charge-Air Cooling Pump
- Front Coolant Pipe
- Lower Coolant Pipe On Compressor
