Removing Front Left Coolant Pipes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot fluid

Danger of scalding

→ Let the fluid cool down.

→ Wear personal protective gear.

Remove front engine cover.
Remove sound insulation. → 108019 REMOVING AND INSTALLING ENGINE GUARD
Drain coolant for low-temperature cooling system. → 193817 DRAINING AND FILLING COOLANT (INCLUDES BLEEDING)

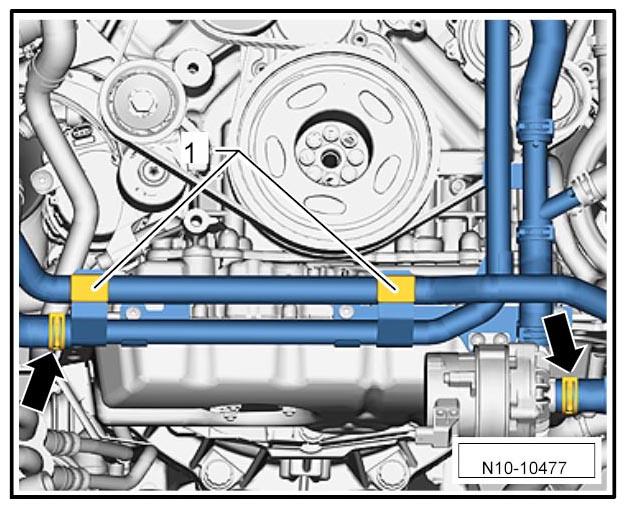

Disconnect coolant hoses -arrows- and remove upper coolant hose -1- from the brackets.

Fig 1: Locating Upper Coolant Hose Brackets
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

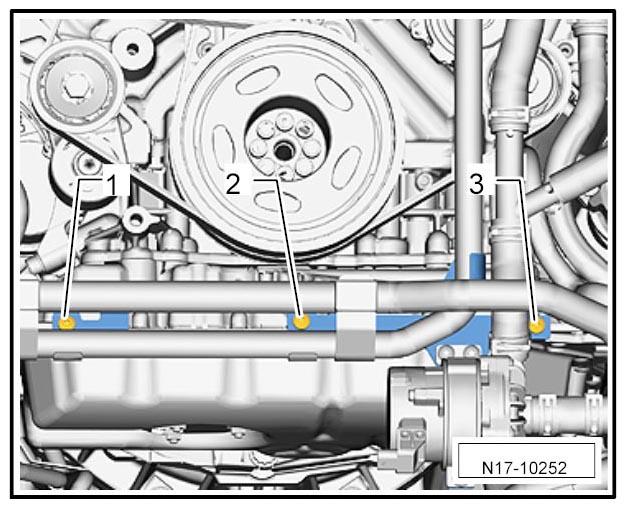

Unscrew screws -1... 3- for the coolant pipes.

Fig 2: Identifying Coolant Pipes Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

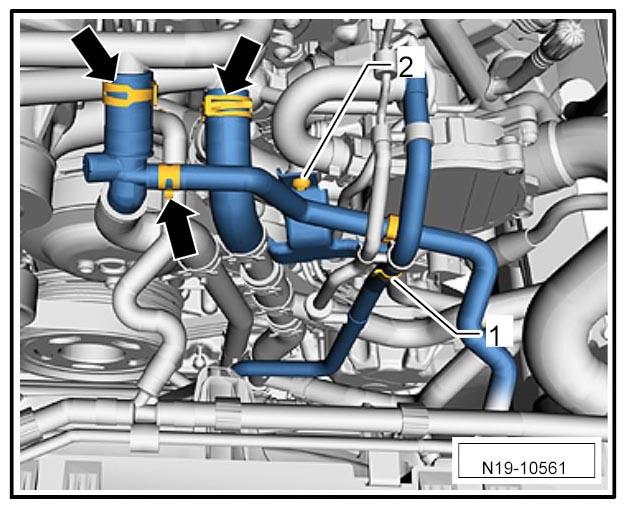

Release vacuum pipe -1- from the holder. Unscrew screw -2- and pull off coolant hoses -arrow- .
Remove coolant pipes and hoses in a downward direction.

Fig 3: Locating Front Left Coolant Hoses Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
