Assembly Overview - Coolant Pipes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

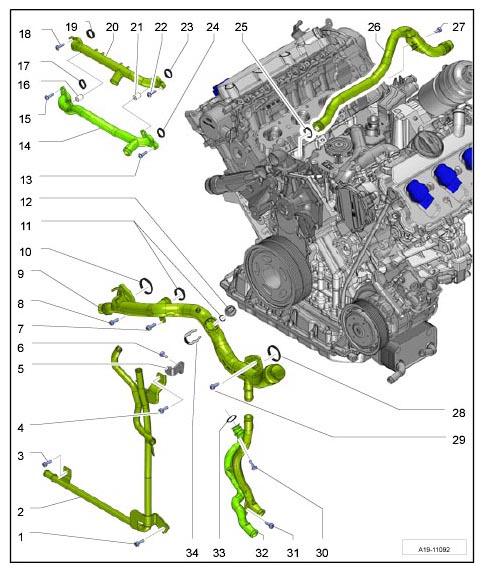

Fig 1: Overview Of Coolant Pipes

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw → Tightening Torque: 9 Nm (6.5 ft. lb.)
Coolant Pipes, Front Left
Screw → Tightening Torque: 9 Nm (6.5 ft. lb.)
Screw → Tightening Torque: 9 Nm (6.5 ft. lb.)
Holder
Screw → Tightening Torque: 22 Nm (16 ft. lb.)
Screw → Tightening Torque: 9 Nm (6.5 ft. lb.)
Screw → Tightening Torque: 9 Nm (6.5 ft. lb.)
Front Coolant Pipe
Seal Replace
O-ring Replace
Coolant Temperature Sensor
Screw → Tightening Torque: 9 Nm (6.5 ft. lb.)
Lower Coolant Pipe On Compressor
Screw → Tightening Torque: 9 Nm (6.5 ft. lb.)
Dowel Sleeve
Seal Replace
Screw → Tightening Torque: 9 Nm (6.5 ft. lb.)
Seal Replace
Upper Coolant Pipe On Compressor
Dowel Sleeve
Screw → Tightening Torque: 9 Nm (6.5 ft. lb.)
Seal Replace
Seal Replace
O-Ring/Replace
Upper Coolant Pipe
Screw → Tightening Torque: 9 Nm (6.5 ft. lb.)
Seal Replace
Screw → Tightening Torque: 9 Nm (6.5 ft. lb.)
Screw → Tightening Torque: 9 Nm (6.5 ft. lb.)
Screw → Tightening Torque: 9 Nm (6.5 ft. lb.)
Engine oil cooler pipes
O-ring Replace
Retaining Clip
