Component Overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

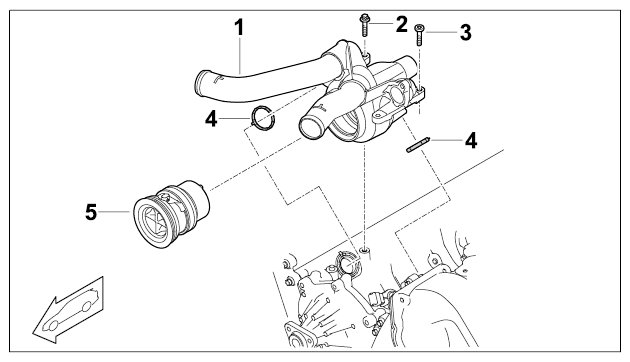

Fig 1: Identifying Thermostat Housing And Coolant Regulator
G09932991Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Thermostat Housing
  2. Screw, M6 x 25
  3. Screw, M6 x 25; screwed to fuel high-pressure distribution pipe
  4. Seal For Thermostat Housing; replace
  5. Thermostat Insert; including electric heating element
