Removing Coolant Regulator

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Pointed or sharp objects

Risk of cracks, pricks or cuts

→ Wear personal protective gear.

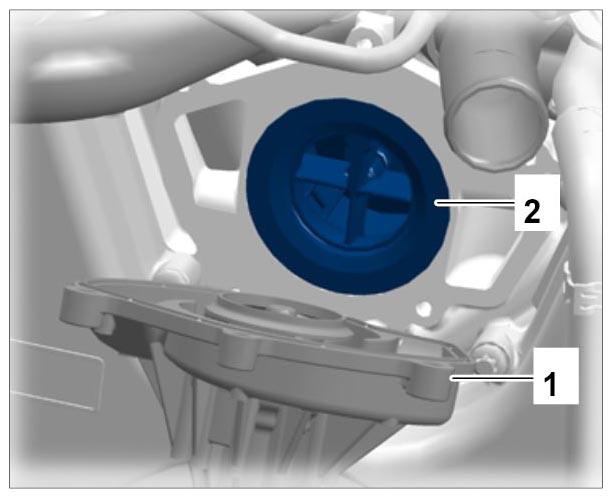

Removed water pump -1- and coolant regulator -2- . →

Fig 1: Identifying Coolant Regulator

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

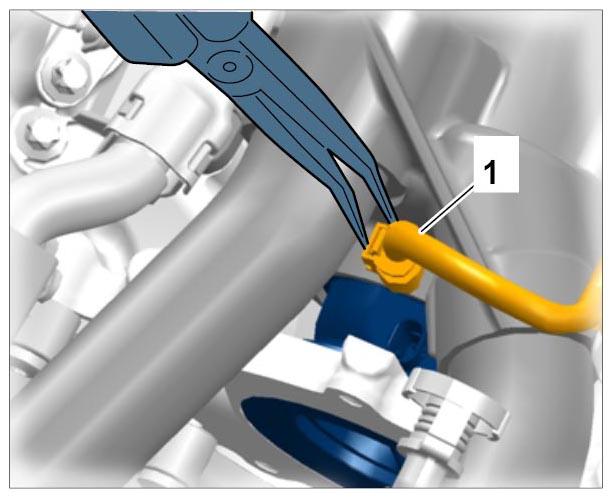

Release cable plug -1- for the coolant regulator by inserting an angled pointed-nose pliers between the crankcase and coolant regulator housing and disconnect it.

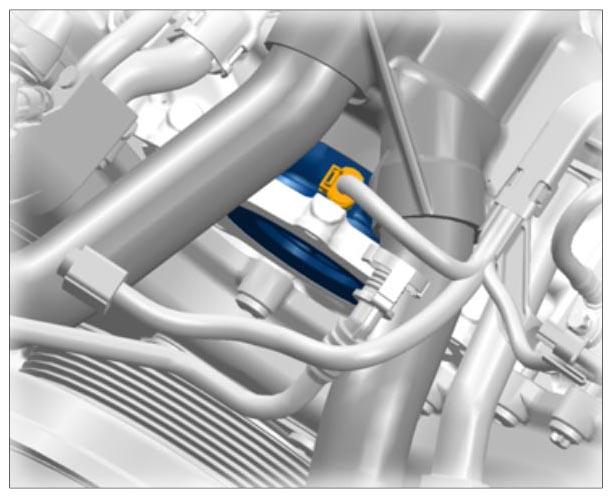

Fig 2: Identifying Coolant Regulator Cable Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 3: Removing Coolant Regulator Cable Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove coolant regulator using shop-made tool.
1. 2.1. Use pointed-nose pliers to wrap a piece of wire or stiff electric cable through several spokes of the coolant regulator. Figure showing screwdriver → Secured electric cable .

  Fig 4: Securing Electric Cable
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

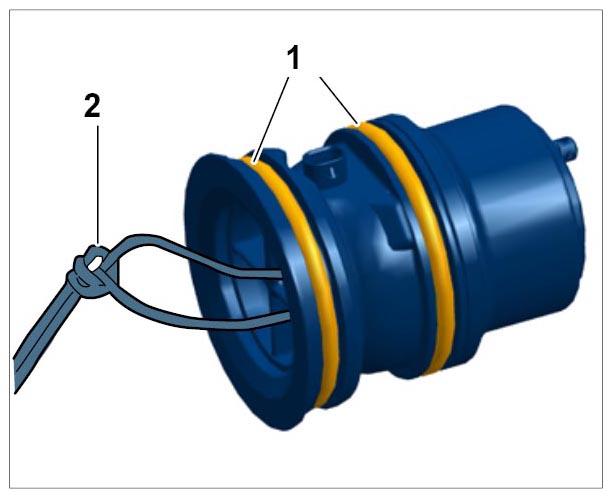

2. 2.2. Tie a knot in the wire or electric cable to prevent it from being pulled out -2- .

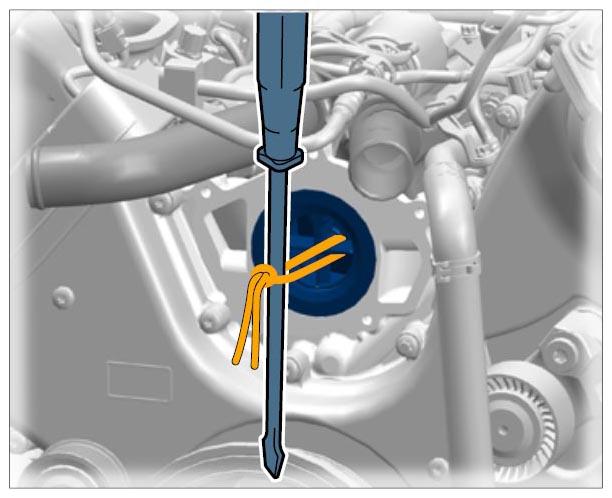

3. 2.3. Insert an assembly lever or a large screwdriver through the cable. → Secured electric cable
4. 2.4. Pull coolant regulator completely out of the crankcase or coolant regulator housing. Support the assembly lever under the vibration balancer if necessary. → Secured electric cable Figure shows removed coolant regulator → Removed coolant regulator .

  Fig 5: Removing Coolant Regulator
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
