Installing Coolant Regulator

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Damaged coolant regulators must be replaced.

Use water-soluble assembly gel "Kluberplus S06-100" with the number 000 043 205 93 (status 06/08) for the sealing rings on the coolant regulator. Dilute it 50:50 with water.

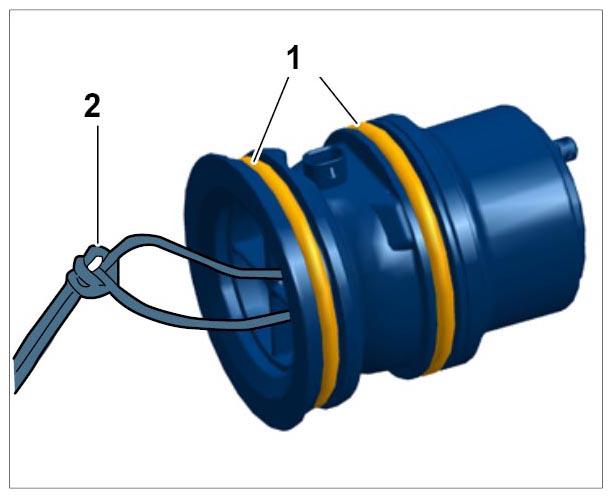

Replace sealing rings on the coolant regulator and coat them lightly with "Kluberplus S06-100". Figure shows coolant regulator with disassembly cable. Check that the sealing rings -1- are fitted at the correct position (sealing rings must not be installed the wrong way round).

Fig 1: Identifying Coolant Regulator Sealing Rings
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push coolant regulator through the opening in the crankcase and in the coolant regulator housing. When doing this, make sure that the cable connection is facing upwards.

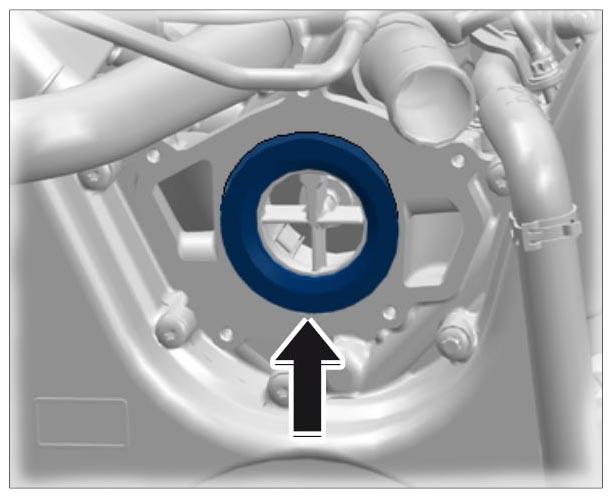

Check that the coolant regulator was fitted as far as it will go. You must not be able to feel any overhang or underhang between the coolant regulator and crankcase. The coolant regulator must be seated flush in the crankcase.

Fig 2: Checking Fit Of Coolant Regulator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect cable plug on coolant regulator.
