Installing Coolant Regulator Housing
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
The tightening specifications for the basic engine are stored centrally (→ 1001IN Tightening TorqueS, TIGHTENING SEQUENCES, ASSEMBLY OVERVIEWS ).
Tightening Torques and assembly instructions for other assemblies (e.g. chassis, electrics, transmission or body) or for peripheral engine equipment can be found in the corresponding documents.
- The components are essentially installed in reverse order to removal.
- Sealing rings must be replaced.
- Insert coolant pipe with new sealing rings into the coolant regulator housing following disassembly. Insert sealing rings with grease 000.043.204.68.

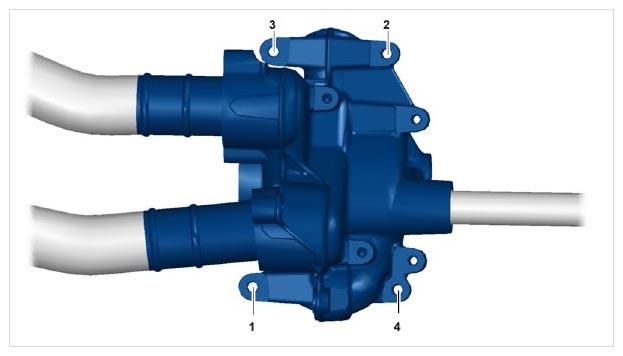

- Insert coolant regulator housing with coolant pipe and secure according to the specified tightening sequence. → Tightening sequence for coolant regulator housing
