Removing Coolant Pump

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release drive belt. → 137819 REMOVING AND INSTALLING DRIVE BELT
  2. If the pulley has to be removed in order to replace the water pump, counter the pulley using a commercially available mandrel or screwdriver and loosen the screws on the pulley.
  3. Turn the drive wheel for the coolant pump in such a way that the fastening screws can be reached through the holes in the pulley -arrows-  .

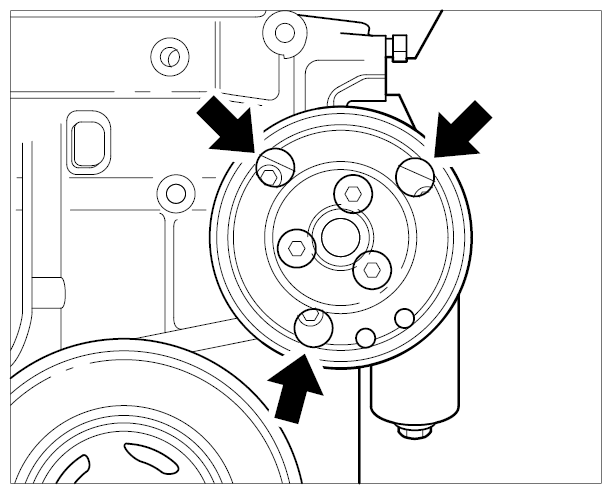

    Fig 1: Locating Coolant Pump Screws
    G09932956Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Pull coolant pump out of the crankcase.

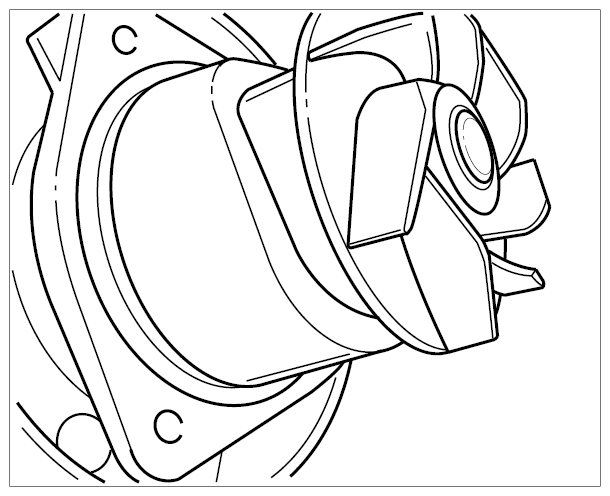

    Fig 2: Identifying Coolant Pump
    G09932957Courtesy of PORSCHE CARS NORTH AMERICA, INC.
