Installing Coolant Pump

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Clean sealing faces and check the condition of the seal that is stuck to the coolant pump for signs of damage → O-ring for coolant pump . If the seal is leaking or damaged, replace the coolant pump.

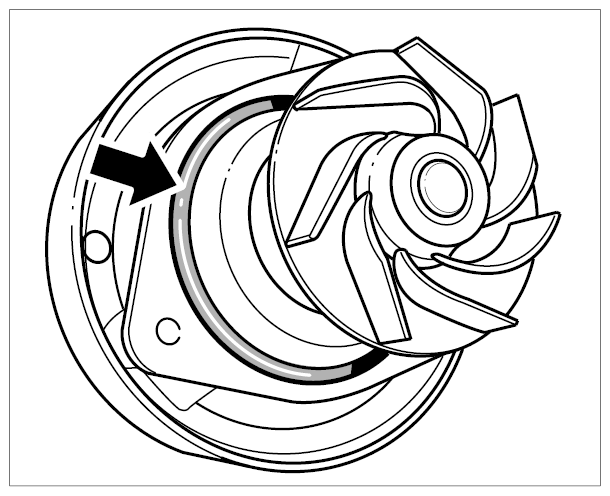

Fig 1: Locating Coolant Pump O-Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Move coolant pump into installation position.
Screw in and tighten the three fastening screws. → Tightening Torque: 8 Nm (6 ft. lb.)

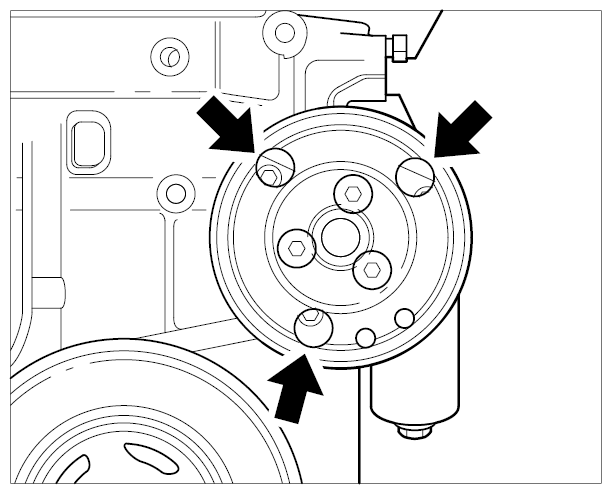

Fig 2: Locating Water Pump Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the pulley if necessary. → Tightening Torque: 20 Nm (15 ft. lb.)
