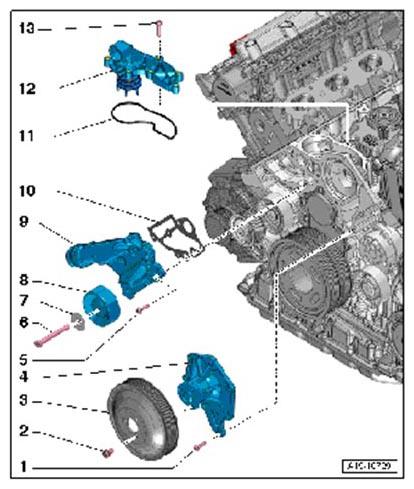

Assembly Overview - Coolant Pump, Coolant Regulator, Adapters
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
- Screw → Tightening Torque: 9 Nm (6.5 ft. lb.)
- Screw → Tightening Torque: 20 Nm (15 ft. lb.)
- Poly-V-belt pulley for coolant pump
- Coolant pump with seal
- Screw → Initial Tightening: 8 Nm (6 ft. lb.) → Torque Angle: 90°
- Screw → Tightening Torque: 42 Nm (31 ft. lb.)
- Washer
- Deflection roller for poly-V-belt
- Adapter
- Seal Replace
- Seal Replace
- Coolant regulator
- Screw → Tightening Torque: 9 Nm (6.5 ft. lb.)
