Removing Coolant Pump For Low-Temperature System

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot fluid

Danger of scalding

→ Let the fluid cool down.

→ Wear personal protective gear.

Drain coolant for low-temperature cooling system. → 193817 DRAINING AND FILLING COOLANT (INCLUDES BLEEDING)

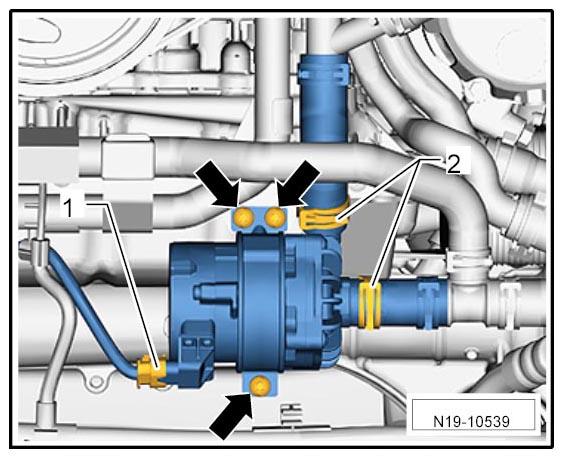

Disconnect electric plug connection -1- and pull off coolant hoses -2- . Unscrew screws -arrows- and remove fastening clip.

Fig 1: Locating Coolant Pump Low-Temperature System
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
